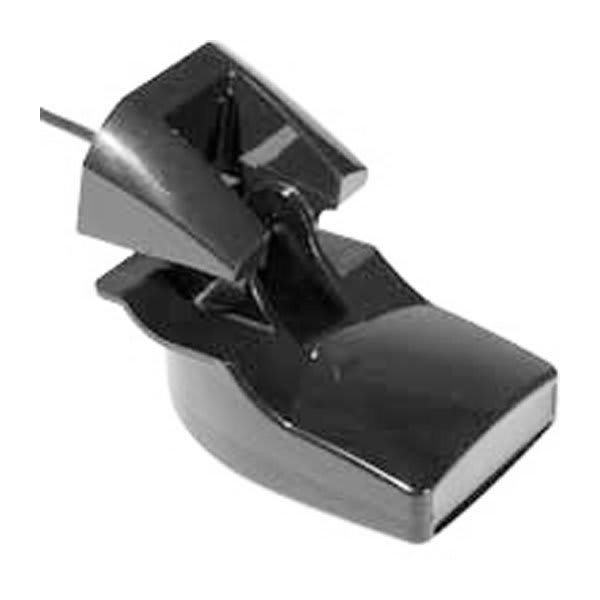

Plastic Transom Mount Transducer with Depth & Temperature (Dual Frequency, 6-pin)
AED 279.00
- Description
- Additional information
Description
Description
This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.
The 500 W 6-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with an 8-pin Garmin sounder, transducer adapter cable part number 010-11613-00 is required. Transducer part number 010-10272-10 is preferred.
Additional information
Additional information
| Series |
|---|
