Name: Garmin Panoptix Live Scope System
SKU: 010-01864-00
Availability: OutOfStock

cf-lg-97e6e30d-2a81-4728-b2e4-b034f2e0aa05

GARMIN

Garmin Panoptix Live Scope System

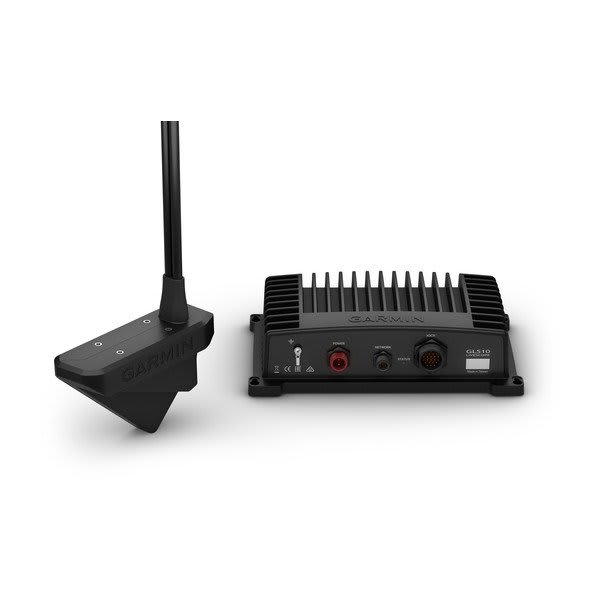

With LiveScope GLS 10 Sonar Black Box and Panoptix LVS32 Transducer

6,159.00

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: Out of stock SKU: 010-01864-00

Add to wishlist

Description
Additional information
SPECS
IN THE BOX

Description

Who wouldn’t want stunning, real-time imagery below and around their boat?

Need a new view? No sweat. This transducer is easy to adjust.

Up to 200 feet down. Up to 200 feet away. That’s an impressive view for real-time sonar.

Even if the waters are rough, this system stabilises the view on your chartplotter screen.

No matter your setup, the simple plug-and-play connector makes install a breeze.

SEE EVERYTHING IN REAL TIME

See easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure, see your lure as you retrieve it, and even distinguish between species of fish in real time.

THREE MODES IN ONE TRANSDUCER

Easily adjust this transducer to how you fish. Point forward to see around your boat, point down to see directly below your boat or adjust to get Perspective view, an overhead angle for shallow water (Perspective mode mount sold separately).

EXCELLENT RANGE

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200 feet in both Forward and Down modes — even while your boat is stationary.

Image stabilisation

Attitude Heading Reference System stabilises the sonar view on your chartplotter screen, even in rough conditions.

CUSTOMISE YOUR VIEW

Switch up the view on your chartplotter with layout options such as forward range compression, hiding on-screen controls, grid angle and new reverse range options.

VIVID COLOUR PALETTES

Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

BEAM ANGLE ICON

This icon appears on your chartplotter display, so you can see where the Panoptix LiveScope transducer is aimed relative to your boat (calibration required).

EASILY CONNECT TO YOUR SYSTEM

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.

Additional information

Series	Panoptix LiveScope™
Mounting Style	TRANSOM OR TROLLING MOTOR MOUNT

SPECS

General
Dimension	GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; LVS32 transducer: 13.7 x 9.7 x 4.6 cm
Weight	GLS 10 sonar black box: 2.0 kg; LVS32 trasnducer: 0.9 kg
Water rating	IPX7
Temperature range	Operating: -15°C to 70°C; Non-operating: -40°C to 85°C

Sonar Features & Specifications
Frequency	530-1,100 kHz
MaxDepth	Down and forward: 200 feet (61 m)

Connections
Connections Garmin Marine Network Ports	1 (small connector)

Electrical Features
Power Input	10-32 V
Power usage	21 W typical, 58 W max
Transmit power	500 W
Fuse	7.5 A

IN THE BOX

LiveScope GLS 10 sonar black box
Panoptix LVS32 transducer
Trolling motor barrel mount
Trolling motor shaft mount
Transom mount
Charging/data cable
2 metre Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation
