Blue Sea Panel Wd 12Vdc Clb 6Pos Gray
PANEL WD 12VDC CLB 6 POS GRAY
AED 979.00
- Description
- Additional information
Description
Description

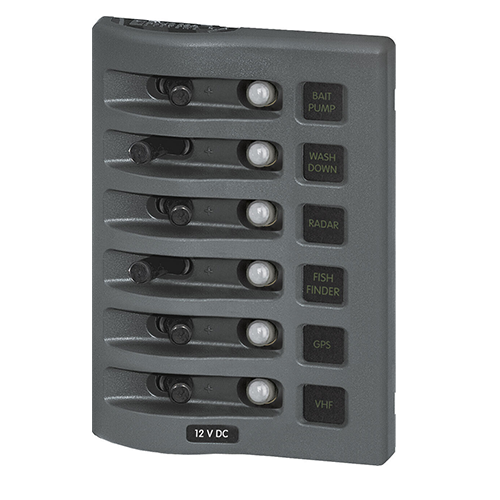

Blue Sea WeatherDeck? 6 position gray waterproof circuit breaker panel.
Designed for open-cockpit and flybridge applications.
Includes 15A, push button reset-only circuit breakers.
Green LEDs illuminate circuit labels.
Integrated switch guards reduce the risk of accidental switching.
Panels can be mounted in four different orientations.
Panel front rated waterproof IP67 when properly mounted with the watertight mounting gasket.
UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws.
Square format label set #4215 included.
Maximum operating voltage: 24V DC.
Maximum operating amperage: 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit).
Backlight operating current (amperage) 10mA/illuminated circuit.
Panel cumulative rating: 45A.
Switch rating 15A maximum.
Backlighting voltage 12 or 24V DC.
Additional information
Additional information
| Weight | 0.61 kg |
|---|
