Garmin Gmr 424 Xhd2 Open Array Radar And Pedestal

Open Array Radar and Pedestal

Original price was: AED 18,909.00.Current price is: AED 17,019.00.

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: Out of stock SKU: K10-00012-08

Add to wishlist

Description
Additional information
SPECS
IN THE BOX

Description

COMPACT, HIGH-DEFINITION RADAR DOME

Name: Garmin Gmr 424 Xhd2 Open Array Radar And Pedestal
SKU: K10-00012-08
Availability: OutOfStock

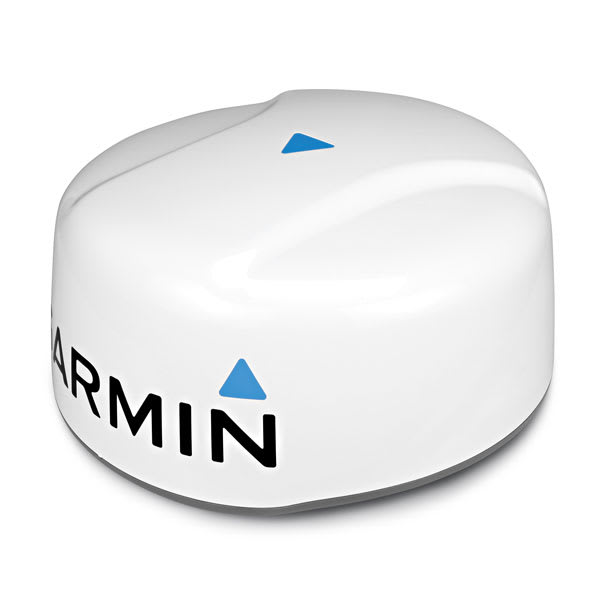

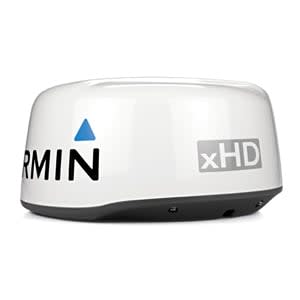

This 18-inch high-definition radar dome pairs ease of use with advanced features typically found on open arrays for enhanced situational awareness.

If your boat has limited space for radar placement, this compact dome is for you.

It packs the power and echo definition you need, at all ranges.

When weather and sea conditions shift, the gain and sea filter do too — automatically.

See what’s close and far away with dual-range operation.

COMPACT AND POWERFUL

This 18-inch dome radar delivers 4-kW transmit power and clear echo definition at all ranges. It has a maximum range of 48 nautical miles (88 km) and 48- or 24-RPM rotation speeds for fast screen refreshes.

HIGH-RESOLUTION RADAR

GMR™ 18 xHD features 8-bit true colour high resolution for outstanding target separation with less screen clutter on your chartplotter.

INTUITIVE OPERATION

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.

DYNAMIC AUTO GAIN

Gain levels automatically adjust to optimum settings for harbours, near shore and offshore in open waters.

DYNAMIC SEA FILTER

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

DUAL-RANGE OPERATION

This feature enables the fully independent split-screen display of far and close radar views.

NO TRANSMIT ZONE

You have the option to protect areas behind the radar from being radiated while providing full forward-looking radar capability. This also makes installation more flexible.

RADAR OVERLAY

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

MARPA TARGET TRACKING

GMR™ 18 xHD provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).

Additional information

Series	GMR™
Radar Type	Radome
Size	4"
Output Power	4KW

SPECS

General
Dimension	50.8 cm diameter, 24.8 cm high
Weight	7.7 kg
Water rating	IPX7
Antenna Length	17″ (43.18 cm)
Rotation speed (RPM)	24/48 rpm (dual rotation)
Beam Width	5.2° horizontal, 25° vertical
Max Range	48 nm
Minimum range	20 meters
Radar Type	Radome

Electrical Features
Power Input	10.5-35 V DC, 33.5 W
Transition Power	4 kW

Radar Features
Dual Range Support
Radar Overlay Support
Dual Radar
Dynamic Auto Gain
MARPA Target Track	yes (requires heading sensor, sold separately)

Additional
Additional	Radar Overlay Support: yes Dual Range Support: yes Dynamic Auto Gain: yes Dynamic Sea Filter: yes Timed Transmit: yes No Transmit Zone: yes

IN THE BOX

GMR 18 xHD
Mounting hardware kit
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Installation instructions
Mounting template
Grommet for marine cable
