GPSMAP® 8410
With Worldwide Basemap
Original price was: AED 11,099.00.AED 9,989.00Current price is: AED 9,989.00.
- Description
- SPECS
- IN THE BOX
Description
Description
SPECS
SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT
The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.
Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
It’s compatible with premium maps and charts for the best in Garmin navigation.
Easily build your marine system using the best of network connectivity.
See below and around your boat with built-in sonar capabilities (transducers sold separately)
From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.
Made for your helm.
HD IPS TOUCHSCREEN
Available in 10″, 12″ or 16″, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.
SIMPLE, ATTRACTIVE MOUNTING OPTIONS
You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm
GRID™ 20 REMOTE CONTROL
The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.
See the world below.
TRADITIONAL AND SCANNING SONAR SUPPORT
Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately). Built-in sonar compabiliity only available on xsv models.
PANOPTIX™ SONAR SUPPORT
Pair your chartplotter with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Sail and navigate with ease.
GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.
SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
CHARTS AND MAPS
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology2 and more.
Connect to everything on your boat.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Connect to autopilots, digital switching, weather, your FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications2 , software updates, Helm, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
ONEHELM™ FEATURE
This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen
SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
Manage your marine experience using the free ActiveCaptain® app.
FIND THE RIGHT SETUP WITH OUR ONLINE SYSTEM BUILDER.
MAKE CONFIDENT DECISIONS USING GNX ™ WIND INSTRUMENTS.
IN THE BOX
General |
|
| DIMENSION | 25.9 cm x 20.5 cm x 7.5 cm |
|---|---|
| TOUCHSCREEN | |
| DISPLAY SIZE | 21.8 cm x 13.7 cm; 10.1″ (25.7 cm) diagonal |
| DISPLAY RESOLUTION | WUXGA; 1920 x 1200 px |
| DISPLAY TYPE | Touchscreen IPS display (anti-glare finish) |
| WEIGHT | 2.4 kg |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail, flat or flush. (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & memory |
|
| ACCEPTS DATA CARDS | 2 SD™ cards (on back of unit) |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 (250 waypoints each) |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 10 Hz GPS/GLONASS/Galileo |
| NMEA 2000® COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| GLONASS | |
| GALILEO | |
| SUPPORTS WAAS | |
Built-in Maps |
|
| (SOUNDER) TIDE TABLES | |
|---|---|
Optional Map Support |
|
| BLUECHART G3 | |
|---|---|
| BLUECHART G3 VISION | |
| LAKEVÜ G3 | |
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| (SOUNDER) TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
| RASTER CHART SUPPORT | |
Chartplotter Features |
|
| GARMIN SMARTMODE COMPATIBLE (CUSTOMISABLE MONITOR PRESETS) | |
|---|---|
| AIS | |
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| GSD BLACK BOX SONAR SUPPORT | |
| GCV™ BLACK BOX SONAR SUPPORT | |
| ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | |
| WIRELESS REMOTE COMPATIBLE | |
| SAILING-FEATURES | |
| SPOKEN AUDIO ALERTS | |
| ONEHELM SUPPORT | |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | |
|---|---|
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | yes (with GCV™ black box, sold separately) |
| CLEARVÜ | yes (with GCV™ black box, sold separately) |
| (SOUNDER) SIDEVÜ | yes (with GCV™ black box, sold separately) |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections |
|
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 differential |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 – BNC composite1 – HDMI (HDCP compliant) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| J1939 PORTS | 1 |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 2 |
| USB PORTS | |
| BNC EXTERNAL GPS ANTENNA PORT | |
| BLUETOOTH® CALLING | |
| ANT+ (CONNECTIVITY) | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.5 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 6.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 40.1W |
MANUALS
SOFTWARE
SUPPORT CENTER
COMPATIBLE PRODUCTS
GRID™ 20
1149 AED
GRID™ 20
1149 AED
YOU MAY ALSO LIKE
Panoptix™ PS51-TH
5139AED
GMR Fantom™ 18
8199AED
WANT MORE FEATURES
- GPSMAP® 8410
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
Related Products
Out of stock
Blue Sea Power Post
AED 89.00
Insulated single stainless steel stud terminates multiple large conductors Connects high amperage cables securely Stud...
Blue Sea Circuit Breaker Push Button St 15A
AED 52.00
Branch circuit breakers (can also be used for 24-hour circuit protection)Quick connect terminal style circuit...

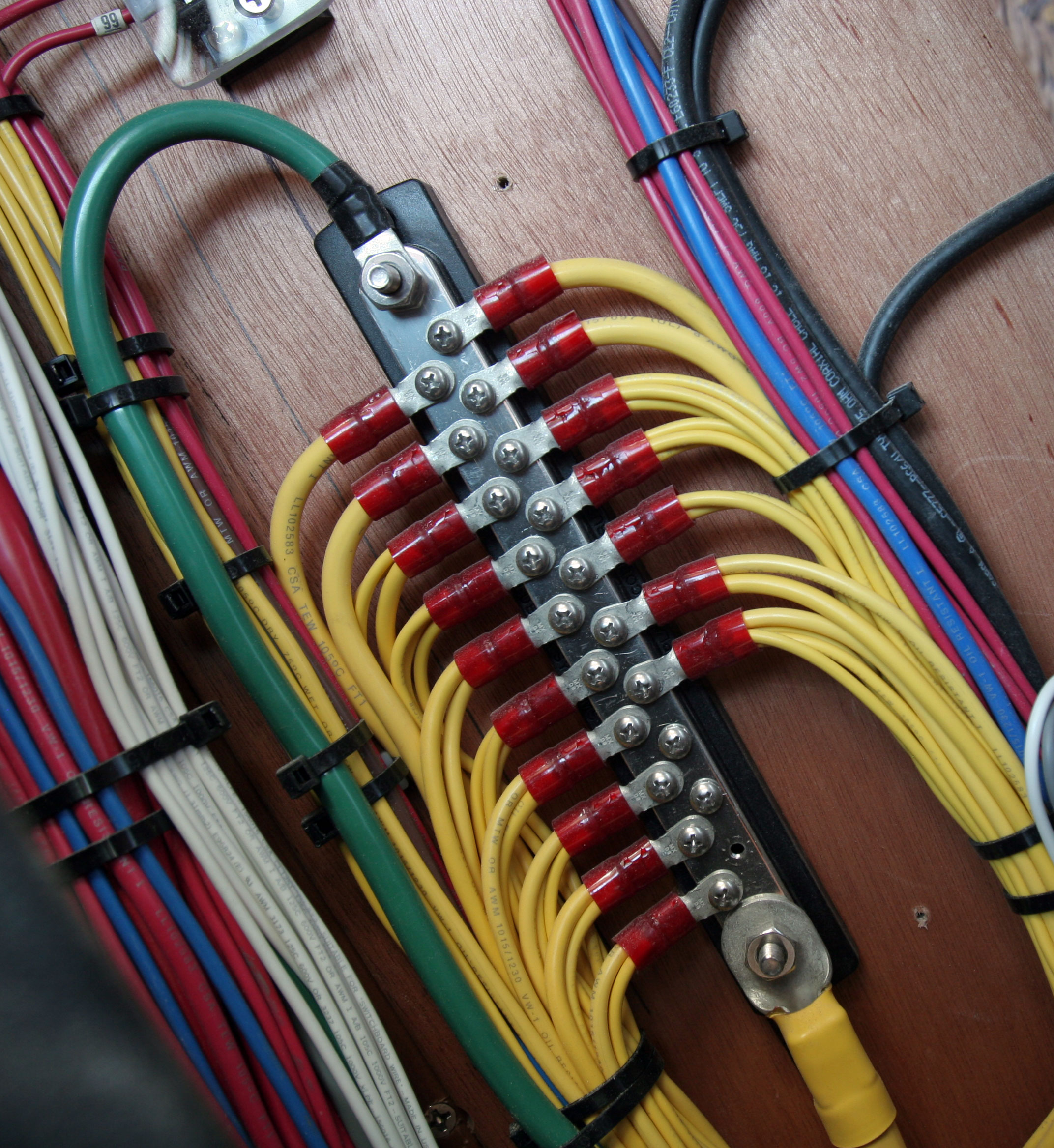

Blue Sea Common 150A Busbar - 20 Gang
