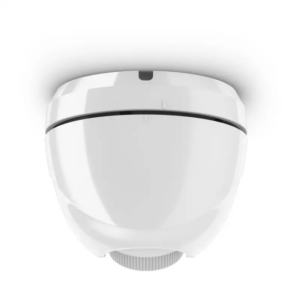

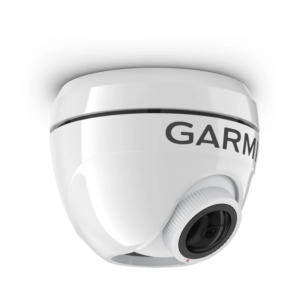

GC™ 245 Surface Mount Camera

Original price was: AED 3,029.00.Current price is: AED 2,726.00.

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: In stock SKU: 010-02892-10

Add to wishlist

Description
Additional information
In The Box
Specs

Description

BRING VISION TO YOUR HELM

Name: GC™ 245 Surface Mount Camera
SKU: 010-02892-10
Availability: InStock

Take the stress out of docking your boat with a high-resolution marine camera. Enhance proximity awareness and confidence at the dock and in close quarters with the low-profile GC 245 Flush Mount Camera.

DISTANCE MARKERS SPECIFIC TO YOUR BOAT¹ AND USER-DEFINED GUIDANCE LINES

1080P HIGH-RESOLUTION OUTPUT²

DURABLE LOW-PROFILE STAINLESS STEEL FINISH

SEE CAMERA FEEDS IN FISHEYE OR STANDARD VIEW; BIRDSEYE VIEW ALSO AVAILABLE¹

FULL INTEGRATION ON THE GARMIN MARINE NETWORK OR GARMIN BLUENET^™ NETWORK

GUIDANCE LINES

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

DISTANCE MARKERS

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects.

RUGGED INSTALLATION

Thru-hull flush mounting ensures sleek and rugged installation.

THREE CAMERA VIEWS

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

MULTIPLE CAMERA FEEDS

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

SEE WHAT YOU WANT

Take a closer look with digital zoom, or get a different perspective with digital pan.

A chartplotter with
4K resolution and
27″ display? That’s
GPSMAP

Enjoy premium sound quality on the water with Fusion^® marine audio equipment.

LEARN MORE

See what’s around you, even when your eyes can’t, with a marine radar.

LEARN MORE

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Additional information

Mounting Type	Surface mount

In The Box

GC 245 flush-mount camera
GVA 10 with integrated power and network cables
Network adapter cable (500 mm)
Video coaxial cable (8 m)
Mounting hardware
Documentation

Specs

Unit dimensions: 8.1 x 8.1 x 8.38 cm (3.2″ x 3.2″ x 3.3″), body; 8.1 x 8.1 x 2.4 cm (3.2″ x 3.2″ x 0.95″)
Weight: 650g (22.9 oz)
Hardwire power: 12V/24V
Operating current: 300 mA at 12VDC; 200 mA at 24VDC
Power consumption: 4.5 W
Connection to chartplotter: IP
Versatile mounting options: thru-hull installation
Rugged housing: yes (high impact)
Install below rub rail: yes
Setup: plug-and-play
Water rating: IPX7
Video resolution: 1920 x 1080 pixels*
Video output: H.264 over GMN and BlueNet^™
Images: Standard and reverse
Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
Viewing angle (H/V): 160°H/90°V
Operating temperature: -20°C to +60°C
Scanning system: progressive scan
Day/night operation: RGB mode full-time

*1080p resolution available on select chartplotters only
