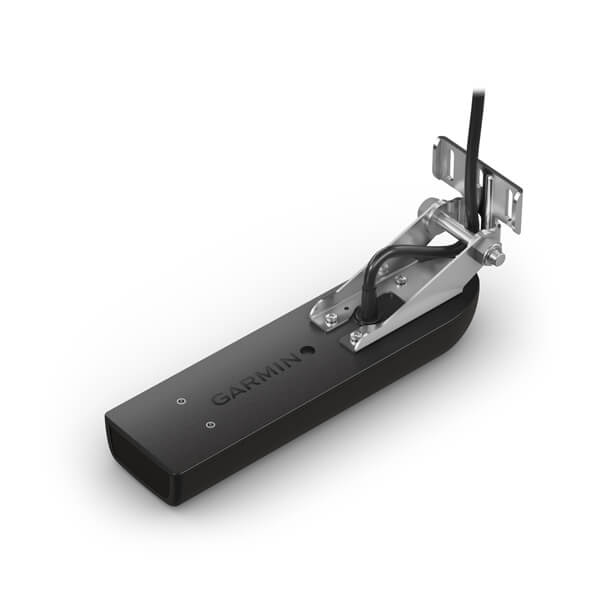

Garmin GT23M-TM
GT23M-TM
AED 1,359.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
GT23M-TM transducer is perfect for coastal and offshore anglers who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
Additional information
Additional information
| Series | |
|---|---|
| Pin Count | 8-PIN |
| Installation | TRANSOM MOUNT |
| Tradition Sonar | MID-CHIRP |
| ClearVü | 260/455KHZ |
SPECS
General |
|
| Transducer frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245- 275 kHz) & 455 kHz (445-465 kHz) |
|---|---|
| Transducer power | CHIRP Traditional 600 W; ClearVü 500 W |
| Transducer beamwidth | Traditional: 24°-13° ClearVü: 2.0°x51° @ 260 kHz 1.4°x29° @ 455 kHz |
| Transducer maximum depth | Traditional: 1,800 ft.; ClearVü: 1,000 ft. |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | Up to 25° deadrise |
IN THE BOX
GT23M-TM transducer
Transom mount
Mounting hardware
Documentation
