GARMIN

Fusion Signature Series 3 Marine Subwoofers

12″ 1,400 Watt Sports Chrome Marine Subwoofer with CRGBW

AED 2,359.00

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: In stock SKU: 010-02436-11

Add to wishlist

Description
Additional information
SPECS
IN THE BOX

Description

EXPERIENCE THE POWER OF MUSIC

Name: Fusion Signature Series 3 Marine Subwoofers
SKU: 010-02436-11
Availability: InStock

Pushing the boundaries of what is possible on the water, the new revamped Signature Series 3 marine speakers deliver unparalleled performance — even when exposed to harsh marine environments.

Experience industry-first marine speakers with CRGBW LED lighting1.

Enjoy greater sound definition and higher output with CURV Cone Technology.

The silk dome tweeter provides a smooth upper frequency response and increased efficiency.

With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.

The speakers are available in 6.5, 7.7 and 8.8-inch designs with both classic and sports style grilles.

Engineered to last season after season, the speakers include a supported 3-year warranty.

DESIGNED AND ENGINEERED TO TRUE-MARINE^™ STANDARDS

Built on the True-Marine design philosophy from Fusion ^® , the Signature Series 3 speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and watertightness, the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.

THE FINEST MATERIALS AND ACOUSTIC ENGINEERING

The Signature Series 3 speakers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.

CURV CONE TECHNOLOGY

CURV is a woven fibre composite that is heat pressed to form a lighter and stronger cone. This delivers greater sound definition and higher output while providing increased protection from marine conditions.

SILK DOME TWEETER

The silk dome tweeter provides a smooth upper-frequency response and increased efficiency, which delivers crystal-clear music reproduction.

LARGE-DIAMETER VOICE COIL

Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound exclusive to the Signature Series 3 speakers.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide full protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

HIGH-GRADE BASKET CONSTRUCTION

The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.

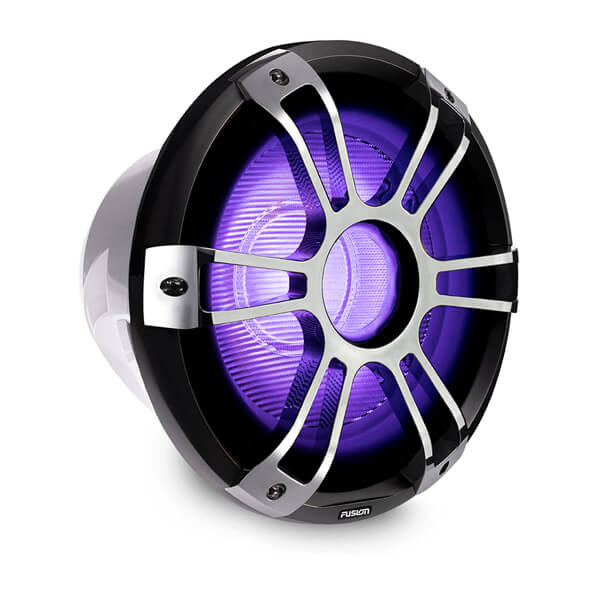

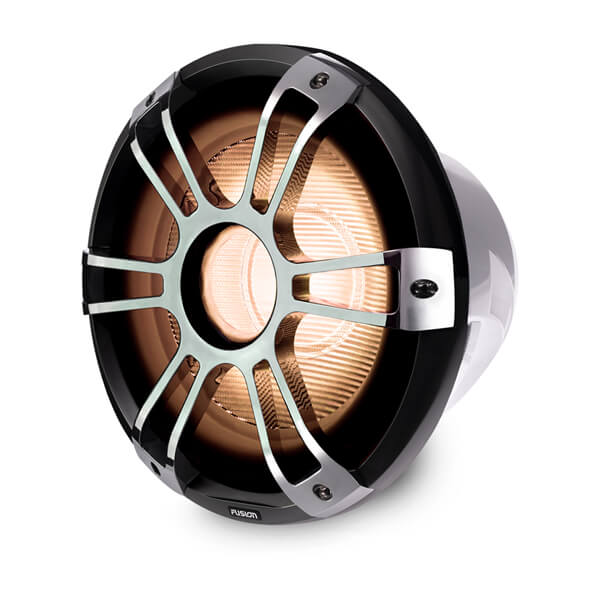

PREMIUM CRGBW LED LIGHTING

Industry-first marine speakers with CRGBW (cool white, red, green, blue, warm white) illuminate an unprecedented spectrum of colours — from premium pastels to vibrant hues — to enhance your audio entertainment experience.

CONTROLLING THE CRGBW LIGHTING

Control the colour (static or dynamic), brightness, light mode and speed by using the optional MS-CRGBWRC wireless remote control (sold separately) or from a Garmin multifunction display via OneHelm™ integrated digital switching (lighting partner controller required).

SPORTS WHITE SPEAKERS

The Signature Series 3 sports white speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature industry-first CRGBW LED lighting options.

CLASSIC WHITE SPEAKERS

The Signature Series 3 classic speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature a timeless, elegantly styled perforated metal grille to blend with the aesthetics of your boat.

SPORTS CHROME SPEAKERS

The Signature Series 3 sports chrome speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature industry-first CRGBW LED lighting options.

Additional information

Series	Fusion®
Size	12"
CRGBW Illumination	Yes
Wake Tower Design	No
Model/Colour	12″ 1,400 Watt Sports Chrome Marine Subwoofer with CRGBW

SPECS

General
Physical dimensions (Diameter x Depth)	8.8″ classic speaker: 9.75″ x 5.19″ (247 x 131.5 mm) 8.8″ sports speaker: 8.82″ x 5.24″ (224 x 133 mm) 7.7″ classic speaker: 8.66″ x 4.31″ (220 x 109.5 mm) 7.7″ sports speaker: 7.72″ x 4.31″ (196 x 111 mm) 6.5″ classic speaker: 7.87″ x 4.06″ (200 x 103 mm) 6.5″ sports speaker: 6.93″ x 4.11″ (176 x 104.5 mm)
Water and dust rating	IP65
Configuration	Coaxial
Speaker size	SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8″ SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7″ SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5″
Peak power (Watts)	8.8″ speaker: 330 W 7.7″ speaker: 280 W 6.5″ speaker: 230 W
RMS power (Watts)	8.8″ speaker: 130 W 7.7″ speaker: 100 W 6.5″ speaker: 75 W
Sensitivity (1 W/1 m)	8.8″ speaker: 91 dB 7.7″ speaker: 91 dB 6.5″ speaker: 90 dB
Frequency response	8.8″ speaker: 50 Hz – 20 kHz 7.7″ speaker: 60 Hz – 22 kHz 6.5″ speaker: 70 Hz – 22 kHz
Nominal impedance	4 ohms
Recommended amplifier power (RMS)	8.8″ speaker: 25 140 W/Ch 7.7″ speaker: 25-120 W/Ch 6.5″ speaker: 30-90 W/Ch
LED lighting	Yes – CRGBW (sports-style only)
LED supply voltage	10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC	300 mA (sports-style only)
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	8.8″ speaker: 1.5″ 7.7″ speaker: 1.4″ 6.5″ speaker: 1.2″
Cone material	CURV cone with rubber surround
Tweeter type	Silk dome
Compass-safe distance	8.8″ speaker: 162″ (412 cm) 7.7″ speaker: 141″ (358 cm) 6.5″ speaker: 122″ (310 cm)
Warranty	3 years
