Fusion Signature Series 3 Marine Subwoofers

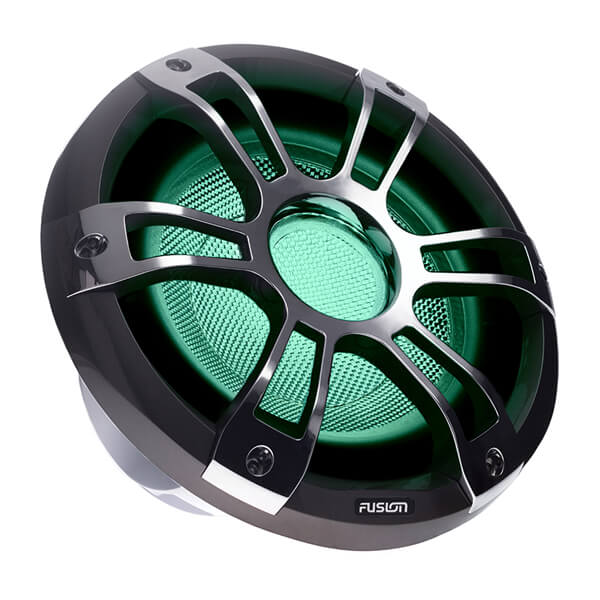

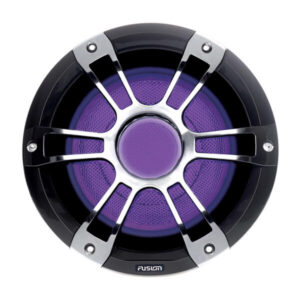

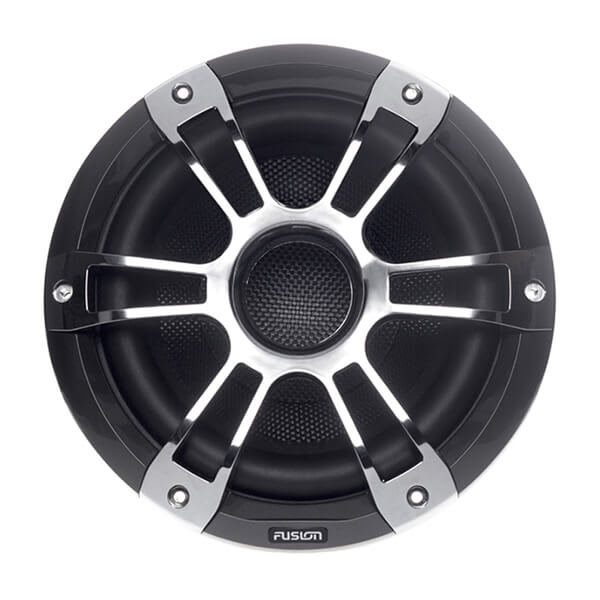

10″ 600 Watt Sports Chrome Marine Subwoofer with CRGBW
AED 1,239.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
EXPERIENCE THE POWER OF MUSIC
Pushing the boundaries of what is possible on the water, the new revamped Signature Series 3 marine speakers deliver unparalleled performance — even when exposed to harsh marine environments.
Experience industry-first marine speakers with CRGBW LED lighting1.
Enjoy greater sound definition and higher output with CURV Cone Technology.
The silk dome tweeter provides a smooth upper frequency response and increased efficiency.
With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.
The speakers are available in 6.5, 7.7 and 8.8-inch designs with both classic and sports style grilles.
Engineered to last season after season, the speakers include a supported 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion ® , the Signature Series 3 speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and watertightness, the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.
THE FINEST MATERIALS AND ACOUSTIC ENGINEERING
The Signature Series 3 speakers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.
CURV CONE TECHNOLOGY
CURV is a woven fibre composite that is heat pressed to form a lighter and stronger cone. This delivers greater sound definition and higher output while providing increased protection from marine conditions.
SILK DOME TWEETER
The silk dome tweeter provides a smooth upper-frequency response and increased efficiency, which delivers crystal-clear music reproduction.
LARGE-DIAMETER VOICE COIL
Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound exclusive to the Signature Series 3 speakers.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide full protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.
HIGH-GRADE BASKET CONSTRUCTION
The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.
PREMIUM CRGBW LED LIGHTING
Industry-first marine speakers with CRGBW (cool white, red, green, blue, warm white) illuminate an unprecedented spectrum of colours — from premium pastels to vibrant hues — to enhance your audio entertainment experience.
CONTROLLING THE CRGBW LIGHTING
Control the colour (static or dynamic), brightness, light mode and speed by using the optional MS-CRGBWRC wireless remote control (sold separately) or from a Garmin multifunction display via OneHelm™ integrated digital switching (lighting partner controller required).
SPORTS WHITE SPEAKERS
The Signature Series 3 sports white speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature industry-first CRGBW LED lighting options.
CLASSIC WHITE SPEAKERS
The Signature Series 3 classic speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature a timeless, elegantly styled perforated metal grille to blend with the aesthetics of your boat.
SPORTS CHROME SPEAKERS
The Signature Series 3 sports chrome speakers are available in 6.5, 7.7 and 8.8-inch sizes and feature industry-first CRGBW LED lighting options.
Additional information
Additional information
| Series | |
|---|---|
| Size | 10" |
| CRGBW Illumination | Yes |
| Wake Tower Design | No |
| Model/Colour | 10" 600 Watt Sports Chrome Marine Subwoofer with CRGBW |
SPECS
General |
|
| Physical dimensions (Diameter x Depth) | 8.8″ classic speaker: 9.75″ x 5.19″ (247 x 131.5 mm) 8.8″ sports speaker: 8.82″ x 5.24″ (224 x 133 mm) 7.7″ classic speaker: 8.66″ x 4.31″ (220 x 109.5 mm) 7.7″ sports speaker: 7.72″ x 4.31″ (196 x 111 mm) 6.5″ classic speaker: 7.87″ x 4.06″ (200 x 103 mm) 6.5″ sports speaker: 6.93″ x 4.11″ (176 x 104.5 mm) |
|---|---|
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8″ SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7″ SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5″ |
| Peak power (Watts) | 8.8″ speaker: 330 W 7.7″ speaker: 280 W 6.5″ speaker: 230 W |
| RMS power (Watts) | 8.8″ speaker: 130 W 7.7″ speaker: 100 W 6.5″ speaker: 75 W |
| Sensitivity (1 W/1 m) | 8.8″ speaker: 91 dB 7.7″ speaker: 91 dB 6.5″ speaker: 90 dB |
| Frequency response | 8.8″ speaker: 50 Hz – 20 kHz 7.7″ speaker: 60 Hz – 22 kHz 6.5″ speaker: 70 Hz – 22 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 8.8″ speaker: 25 140 W/Ch 7.7″ speaker: 25-120 W/Ch 6.5″ speaker: 30-90 W/Ch |
| LED lighting | Yes – CRGBW (sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 300 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 8.8″ speaker: 1.5″ 7.7″ speaker: 1.4″ 6.5″ speaker: 1.2″ |
| Cone material | CURV cone with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 8.8″ speaker: 162″ (412 cm) 7.7″ speaker: 141″ (358 cm) 6.5″ speaker: 122″ (310 cm) |
| Warranty | 3 years |
IN THE BOX
One pair of speakers (based on what you select)
Documentation
