Fusion RA70 Series Marine Stereos

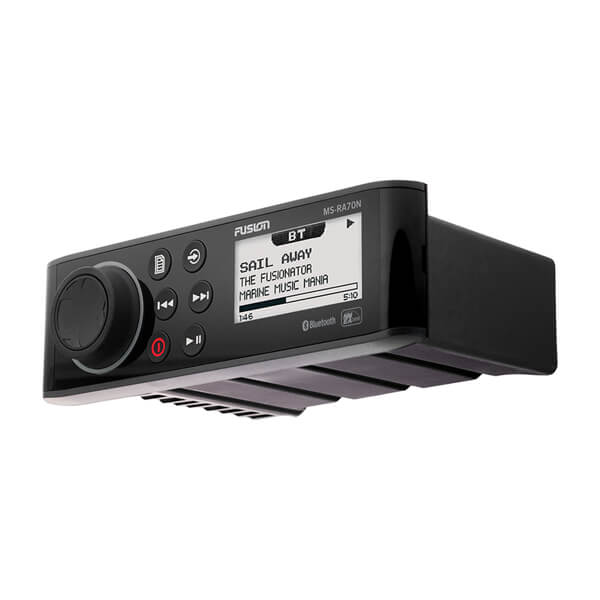

MS-RA70N Marine Stereo with Bluetooth® and NMEA 2000®
AED 1,409.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT
Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®. The RA70 Series includes three marine stereos — MS-RA70, MS-RA70N and MS-RA70NSX.
Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.
Optically bonded monochrome LCD improves screen visibility.
Built-in Class-AB amplifier delivers efficiency with reduced distortion.
Multi-Zone™ Technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth ® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
Additional information
Additional information
| Series | |
|---|---|
| NMEA 2000® Connectivity | YES |
SPECS
General |
|
| Physical dimensions (HxWxD) | 60 x 188 x 123.5 mm |
|---|---|
| Weight | 556 g |
| Water rating | IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | 10 metres |
| ANT wireless range | 3 metres |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal |
| Compass-safe distance | 150 mm |
Stereo features |
|
| Display | 128 x 64 optically bonded monochrome LCD |
|---|---|
| Built-in amplifier | Class-AB |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA70: Yes (smartphone and Garmin watch) MS-RA70N: Yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | |
| ANT wireless technology | |
| DAB+ ready | MS-RA70 and MS-RA70N only; (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA70N only |
| Multi-language interface | Dutch / English / French / German / Italian / Spanish |
| Fits DIN-sized cutout | |
| Software updates | USB |
| Warranty | 1 year |
Sources |
|
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only) |
|---|---|
Connectivity |
|
| Auxiliary input | One RCA input (AUX) |
|---|---|
| NMEA 2000 | MS-RA70N : 1 port |
| USB 2.0 | One USB 2.0 port |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 2 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
IN THE BOX
All RA70 Series stereos contain:
DIN mounting plate
Four 8-gauge, self-tapping screws
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
Documentation
MS-RA70N also includes a 2 metre NMEA 2000® drop cable
