Fusion Ps-A302B Panel-Stereo,Am/Fm/Bt/Usb/Aux/Lineout,Bk,Rtl

Indoor

AED 1,409.00

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: Ships within 10 Business Days SKU: 010-02005-00

Add to wishlist

Description
Additional information
SPECS
IN THE BOX

Description

PLUG-AND-PLAY, ALL-IN-ONE SOLUTION

Name: Fusion Ps-A302B Panel-Stereo,Am/Fm/Bt/Usb/Aux/Lineout,Bk,Rtl
SKU: 010-02005-00
Availability: PreOrder

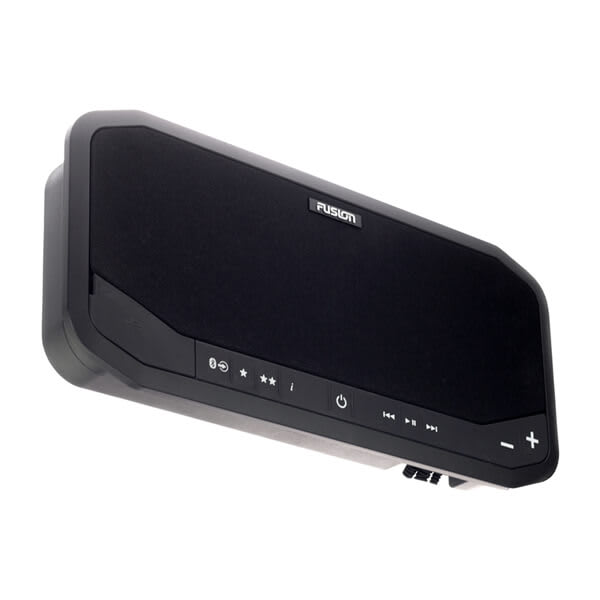

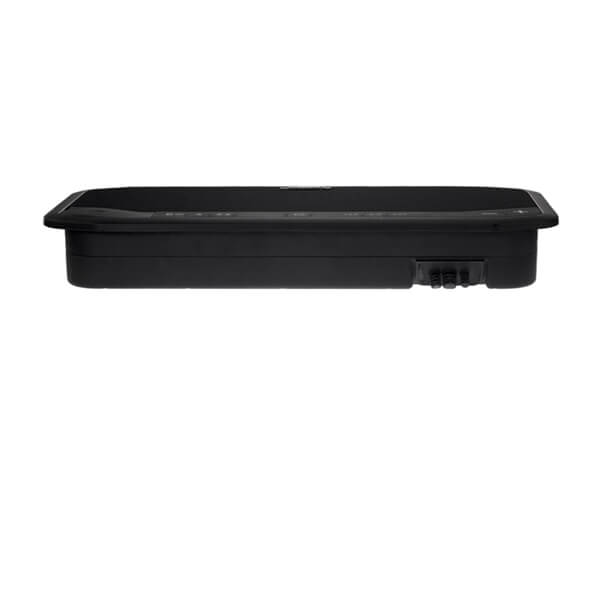

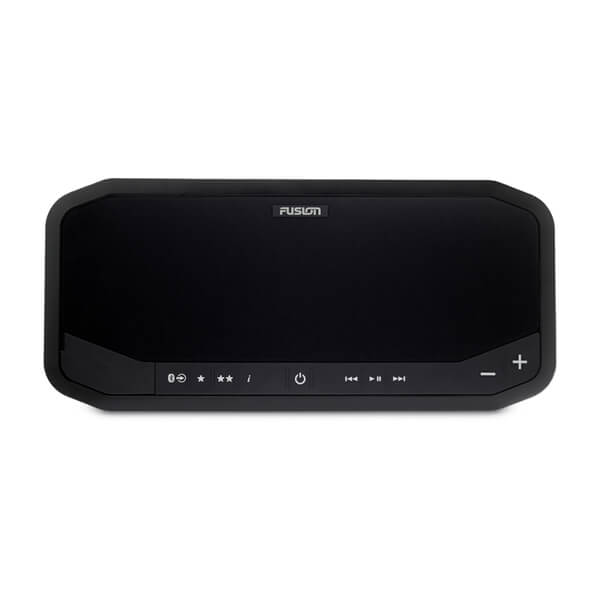

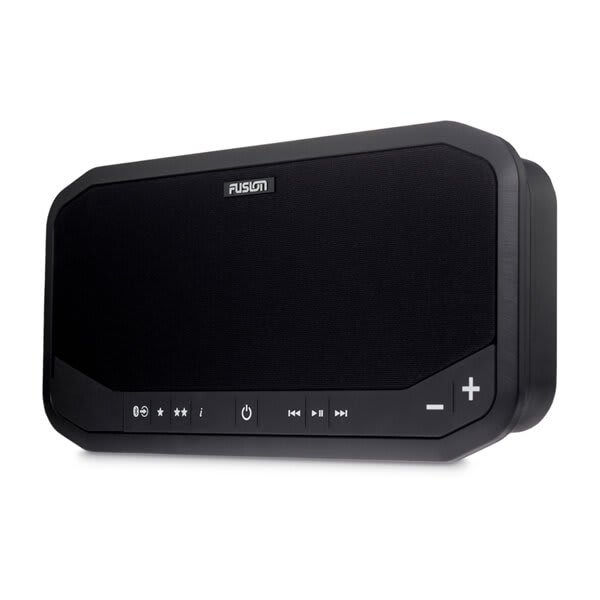

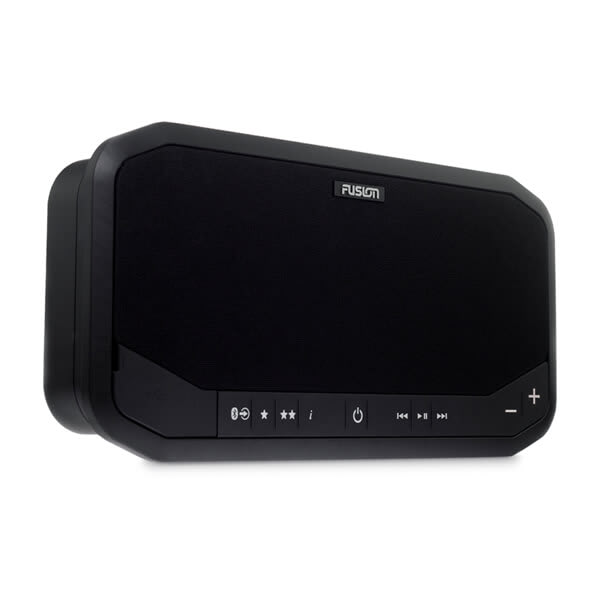

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.

Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.

Hi-Fi audio reproduction through preconfigured DSP.

Built-in Class-D amplifier delivers higher efficiency and greater output.

Optimally tuned, sealed enclosure with two 3-inch speakers and passive bass radiator.

Multiple mounting options available, including flush, flat and surface mounting.

Control your music from a compatible smart device or Garmin watch.

IP65 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor comes with a high-grade plastic grille and UV-resistant design.

QUICK AND SIMPLE TO INSTALL

The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.

FUSION DIGITAL SIGNAL PROCESSING

A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

PERFECTLY TUNED ENCLOSURE

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimised audio onboard from a single unit.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the different source options available, including Bluetooth ^® technology, AM/FM radio, AUX and USB connections.

SURFACE MOUNTING SPACER

You can install the Panel-Stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.

Additional information

Series	Fusion®

SPECS

General
Physical dimensions (HxWxD)	6.10″ x 13.54″ x 1.97″ (155 x 344 x 50 mm)
Weight	2.54 lb (1.15 kg)
Water rating	IP65 (excluding rear connectors)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	10 A
Fuse	10 A
Bluetooth wireless range	Up to 30 ft. (10 m)
ANT wireless range	Up to 10 ft. (3 m)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +9 dBm nominal ANT 2.4 GHz @ +9 dBm nominal
Compass-safe distance	7.6′ (229 mm)

Stereo features
Built-in amplifier	Class-D
Peak power	140 W
Rated power output	43 W rms x 2 @ 14.4 V input < 1% THD
Built-in Digital Signal Processing
Fusion-Link™ control	Yes (smartphone and Garmin watch)
Bluetooth wireless technology
ANT wireless technology
Language	Dutch/English/French/German/Italian/Japanese/Mandarin Chinese/Spanish
Software updates	USB
Warranty	1 year

Sources
Sources	AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x2/AOA

Connectivity
Auxiliary input	Two RCA inputs (AUX1, AUX2)
USB 2.0	One USB 2.0 port
AM/FM radio	One Motorola antenna connector port
Line out	1 RCA output (AUX)

IN THE BOX

Fusion® Panel-Stereo
Stereo trim
Six 6-gauge, self-tapping stainless-steel screws
Power wiring harness
Documentation
