ECHOMAP™ UHD2 5″ Chartplotters 52cv with GT20-TM Transducer
62sv with GT54UHD-TM Transducer
Original price was: AED 2,079.00.AED 1,871.00Current price is: AED 1,871.00.
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

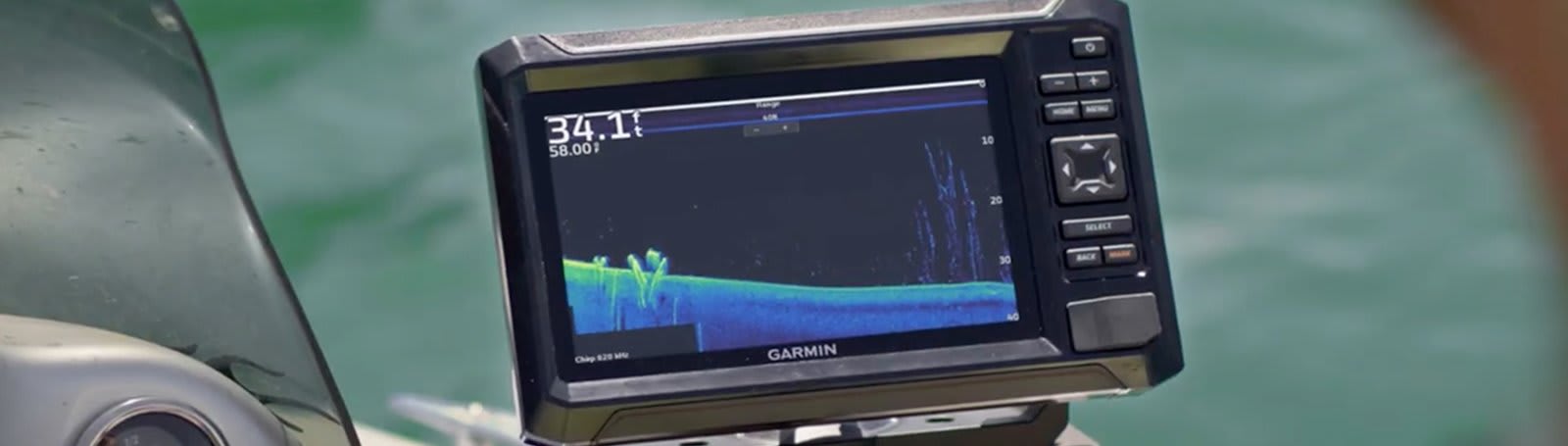

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5”and 7” chartplotters with clear, crisp sonar and mapping.
The bright 5” or 7” keyed display is made for convenience.
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
What’s under the water looks even better with high-contrast vivid color palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
Enjoy No. 1 in mapping3 with our LakeVü g3 and BlueChart® maps with Navionics® data.
Know the waters, catch more fish.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in LakeVü g3 inland maps, BlueChart g3 coastal charts or worldwide basemap with support for Garmin Navionics+ ™ and Garmin Navionics Vision+ ™ marine cartography.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints and routes — with them.
ACTIVECAPTAIN® APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart ™ feature, software updates, Garmin Quickdraw ™ Community data and more 2 .
Manage your marine experience using the free ActiveCaptain app
Add a Portable Ice Fishing Kit
Additional information
Additional information
| Series | |
|---|---|
| Display Size | 6" |
| Sonar Type | ULTRA HIGH-DEF SIDEVU CLEARVU AND TRADITIONAL CHIRP |
| Charts and Maps | WORLWIDE BASEMAP |
| Includes Transducer | Yes |
SPECS
General |
|
| Dimension | 7.4″ x 4.8″ x 2.4″ (18.8 x 12.2 x 6.2 cm) |
|---|---|
| Input | |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Display Type | WVGA, IPS |
| Weight | 1.1 lbs (0.5 kg) |
| Waterproof | IPX7 |
| Mounting Options | Bail or flush |
Maps & memory |
|
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| Has built-in receiver | |
|---|---|
| Receiver | 5 Hz |
| GPS | |
| Supports WAAS | |
Built-in Maps |
|
| BlueChart (coastal) | yes (see Additional) |
|---|---|
| LakeVu (inland) | yes (see Additional) |
| (Sounder) Tide tables | yes (see Additional) |
Optional Map Support |
|
| LakeVü g3 | |
|---|---|
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| (Sounder) TOPO | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| ActiveCaptain compatible | |
|---|---|
Sonar Features & Specifications |
|
| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
Connections |
|
| 4-pin transducer ports | 1 |
|---|---|
| Garmin Wi-Fi network (local connection) | |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
Additional |
|
| Additional | BlueChart (coastal): 54cv U.S. BlueChart g3, 55cv U.K./Ireland BlueChart g3, 55cv Australia/New Zealand BlueChart g3, 74cv U.S. BlueChart g3, 75cv UK/Ireland BlueChart g3, 75cv Australia/New Zealand BlueChart g3 LakeVü: 55cv U.S. LakeVü g3, 55cv Canada LakeVü g3, 73cv U.S. LakeVü g3, 73cv Canada LakeVü g3 Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv |
|---|---|
IN THE BOX
With Transducer
- ECHOMAP UHD2 (device varies depending on selection)
- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Without Transducer
- ECHOMAP UHD2 (device will vary depending on selection)
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
