Blue Sea Minibus 5 X #8-32 Commonbus W/Cvr
94.00
- Description
- Additional information
Description
Description
Product Description

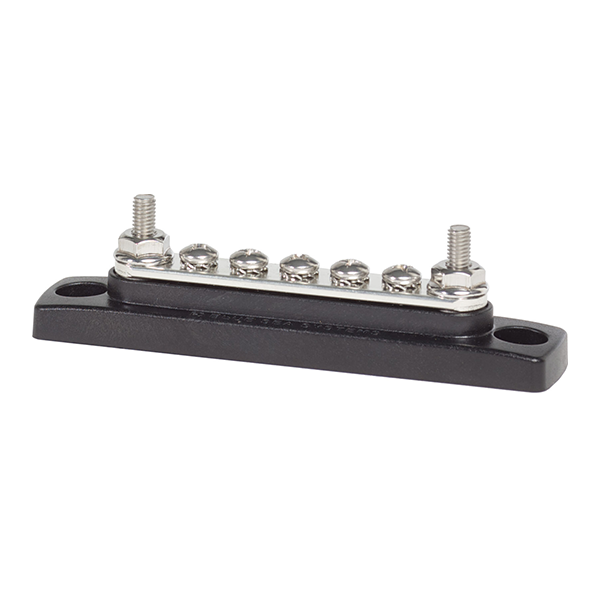

Blue Sea Common MiniBus Bus Bar 5 Gang with Cover
- Provides busing for limited splace applications
- One-piece serrated flange nuts ensure correct and secure connections
- CE Certified
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 |
| Number of Terminal Studs | 2 |
| Terminal Type | #10-32 Stud #8-32 Screw |
| Continuous Rating | 100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110/ UNS11000 |
| Cover Material | Clear Polycarbonate |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 18 in-lb (2.03 Nm) |
| Weight | 0.18lb (0.08 kg) |
Additional information
Additional information
| Weight | 0.08 kg |
|---|
