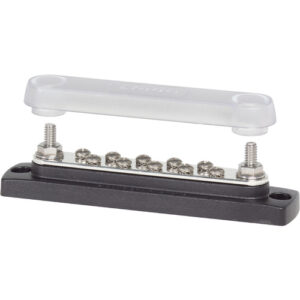

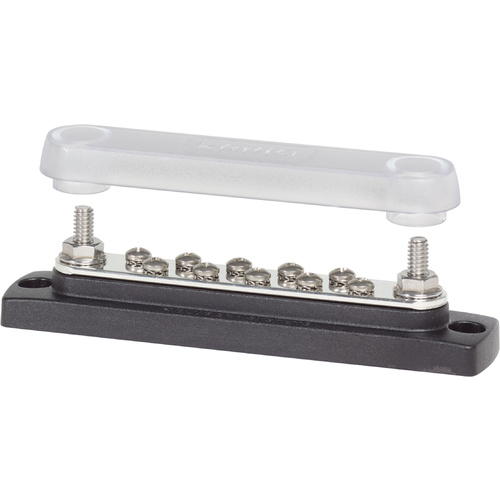

Blue Sea Busbar 10 Gang Common Bus W/Cvr
122.00
- Description
- Additional information
Description
Description
Common 150A BusBar – 10 Gang with Cover
The industry standard busbar for the collection of negative or AC ground circuits.
Insert-molded stainless steel stud eliminates need for securing nut and allows high torqueing for excellent electrical contact.
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 10 |
| Number of Terminal Studs | 2 |
| Terminal Type | 1/4″ Stud #8-32 Screw |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.37lb (0.17 kg) |
Additional information
Additional information
| Weight | 0.17 kg |
|---|
