Airmar R109Lhw 2 Kw Plastic Thru-Hull Mount Transducer
15,369.00
- Description
- Additional information
- SPECS
Description
Description

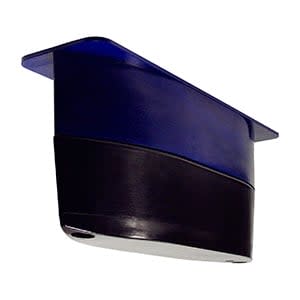

This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.
A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 6,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9×23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Additional information
Additional information
| Series |
|---|
SPECS
General |
|
| Transducer frequency | CHIRP 38-75 kHz & 150-250 kHz |
|---|---|
| Transducer power | 1-2 kW |
| Transducer beamwidth | 5°x10°-10°x19°/24°-26° |
| Transducer maximum depth | 6,000 ft. |
| Transducer cable length | 49 ft. |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | Bare Wires |
| Transducer supported deadrise/transom angles | 0°-25° degree deadrise |
