Description
Description

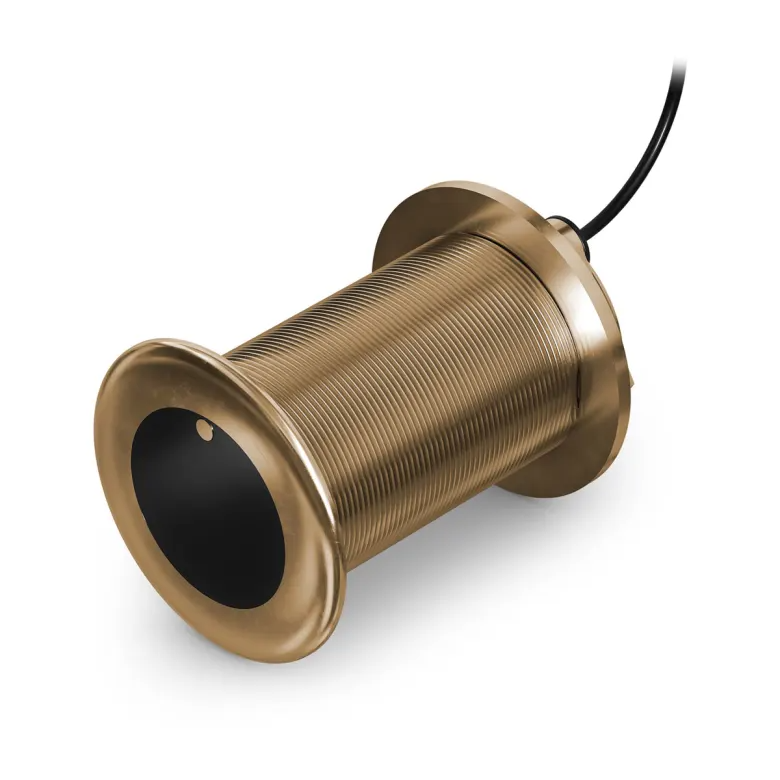

Designed for coastal fishing with an operating frequency range of 150-250 kHz. This CHIRP transducer has a constant 25° beam width provides increased coverage under the boat. Designed for boats 25’ and above with fiberglass or wood hulls.
Additional information
Additional information
| Series |
|---|
SPECS
General |
|
| Transducer frequency | CHIRP Low (42-65 kHz) & CHIRP High (150-250 kHz) |
|---|---|
| Transducer power | 1kW |
| Transducer beamwidth | 5°x10°-10°x19°/24°-26° |
| Transducer maximum depth | 3,000 ft |
| Transducer cable length | 12 meters |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | 12-pin |
| Transducer supported deadrise/transom angles | 0°-25° degrees |
