Garmin Reactor 40 Mechanical/Retrofit/Solenoid Corepack With Ghc 50 Autopilot Instrument
With GHC™ 50 Autopilot Instrument
7,439.00
Get instant Cash | Home pickup or Store drop-off More details >
- Description
- Additional information
- IN THE BOX
- SPECS
Description
Description
EVERY CAPTAIN NEEDS A CO-PILOT
Designed for powerboats and sailboats, the Reactor 40 autopilot gives you the extra hand you need, so you can explore paradise worry-free.
The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems.
Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
Plot your paradise
COREPACK COMPATIBILITY
This corepack works with direct or cable-actuated steering systems to support heading hold, wind hold, step turns and tack/jibe modes.
SOLID-STATE 9-AXIS AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.
REACTS TO WATER CONDITIONS
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.
SIMPLE CALIBRATION
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
SHADOW DRIVE™ TECHNOLOGY
Gain more freedom when manoeuvring your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
THREE CLASS DRIVES
Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.
OPTIONAL GHC 50 BUNDLE
POWERBOAT AND SAILING FEATURES
When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.
OPTIONAL GRF™ 10 SENSOR
For even more peace of mind, add the GRF 10 rudder feedback sensor to further enhance your autopilot’s performance (requires GHC 50 autopilot instrument or compatible Garmin chartplotter).
Additional information
Additional information
Series | |
---|---|
GHC™ Autopilot Instrument | GHC™ 50 |

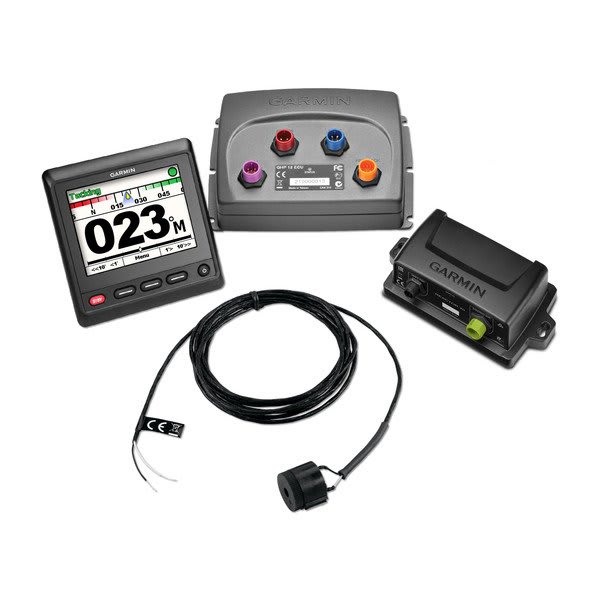

IN THE BOX
Reactor 40 CCU (Course Computer Unit)
GHC™ 50 helm control display
NMEA 2000® drop cables (2 metres)
NMEA 2000 T-connectors
Buzzer
Male and female terminators
Interconnect cable
ECU (Electronic control unit)
ECU (Electronic Control Unit) power cable
Documentation
SPECS
Buzzer/Alarm Specifications |
|
Dimensions (L x Diameter) | 29/32″ x 1″ (23 mm x 25 mm) |
---|---|
Weight | 2.4 oz (68 g) |
Temperature range | From 5°F to 131°F (from -15°C to 55°C) |
Cable length | 10 ft (3.0 m) |
CCU dimensions | 4.3″ x 4.4″ x 1.9″ (10.9 x 11.2 x 4.8 cm) |
ECU dimensions | 6.6″ x 4.6″ x 2.1″ (16.8 x 11.7 x 5.3 cm) |
Supply voltage | 10 V to 30 V |
Operating temperature | -15° C to 60 C° (5° F to 140° F) |
Maximum sustained motor current | 15A |
Maximum instantaneous motor current | 40A |
Maximum clutch current | 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit) |
