Garmin Livescope Plus System W/ Lvs34 And Gls10

With GLS 10™ and LVS34 Transducer

8,309.00

Easy Payment Plan Available for credit cards. Learn More

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >

Availability: Ships within 10 Business Days SKU: 010-02706-00

Add to wishlist

Description
Additional information
SPECS
IN THE BOX

Description

THE BEST OF THE BEST JUST GOT BETTER

Name: Garmin Livescope Plus System W/ Lvs34 And Gls10
SKU: 010-02706-00
Availability: PreOrder

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

See images clearly with improved screen clarity, transducer sensitivity and target separation.

Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.

Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid colour palettes.

Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

CLEAR VISION

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILISATION

A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOUR PALETTES

Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

FORWARD MODE

Scout ahead of your boat to see what’s happening in real time.

DOWN MODE

Explore live views of the activity directly beneath your boat.

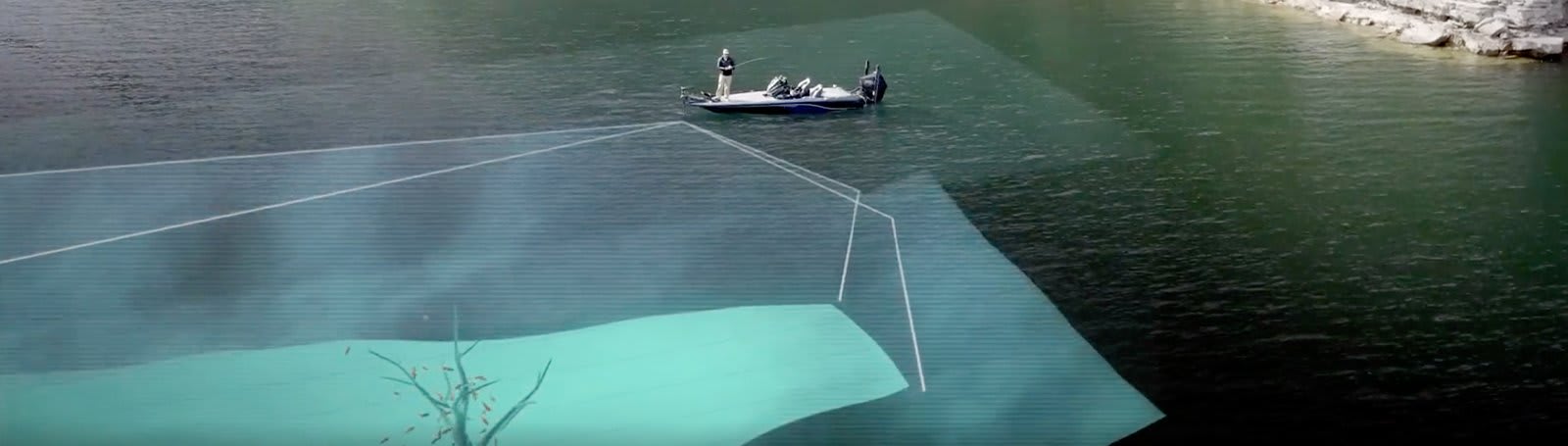

PERSPECTIVE MODE

See under the water with a view from your perspective above the water.

Additional information

Series	LiveScope™
Sonar Module Included	YES

SPECS

General
Dimension	GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm;LVS32 transducer: 13.7 x 9.7 x 4.6 cm
Weight	GLS 10 sonar black box: 2.0 kg;LVS32 transducer: 0.9 kg
Water rating	IPX7
Temperature range	GLS 10 Black Box: Operating: -15 C to 70 CPanoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications
Frequency	530 – 1,100 kHz
MaxDepth	Down and Forward: 61.0 m

Connections
Connections Garmin Marine Network Ports	1 (small connector)

Electrical Features
Power Input	10-32 V
Power usage	21 W typical, 58 W max
Transmit power	500 W
Fuse	7.5 A
Compass safe distance	4″ (0.1 m)

IN THE BOX

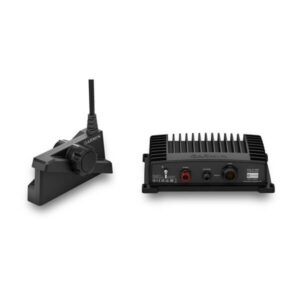

LiveScope GLS 10 sonar black box

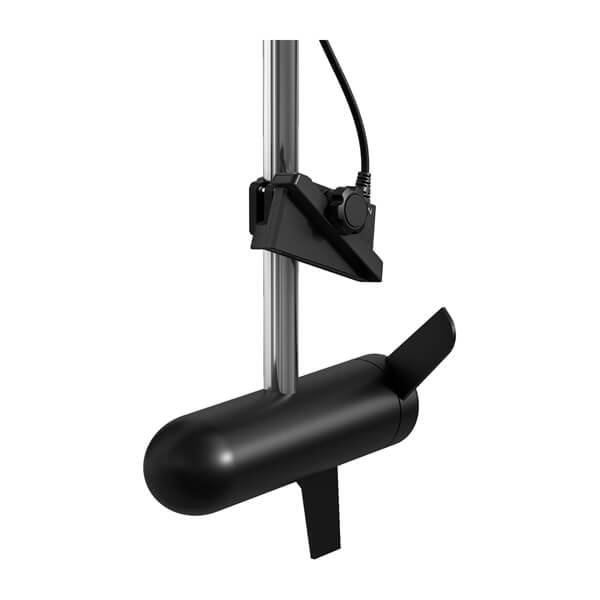

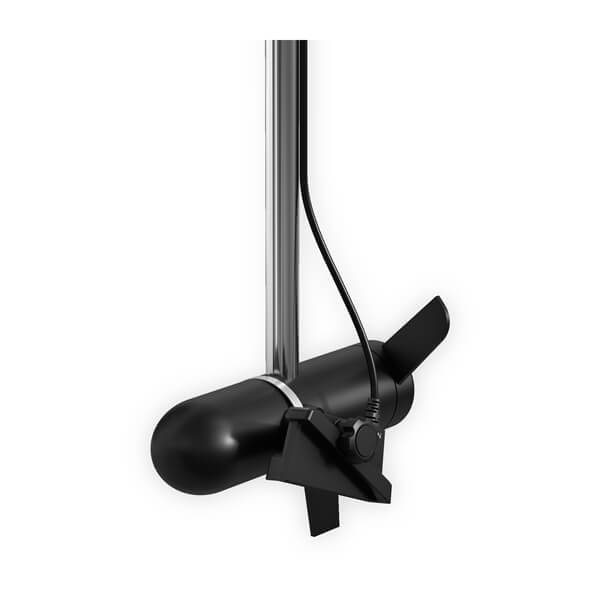

Panoptix LVS34 transducer

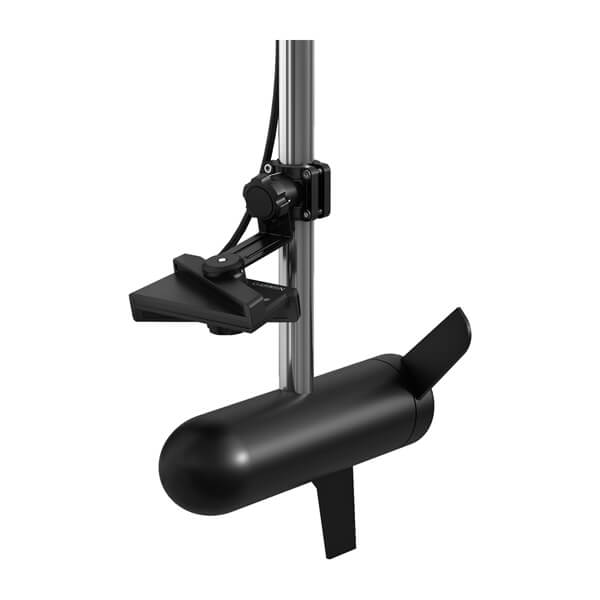

Perspective mount
Trolling motor barrel mount
Shaft mount
Power cable
2 metre Garmin Marine Network cable (small connector)
Network adapter cable
Documentation
