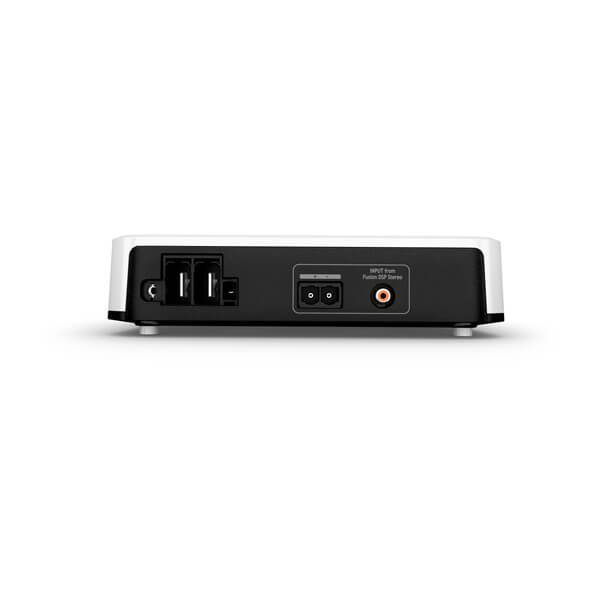

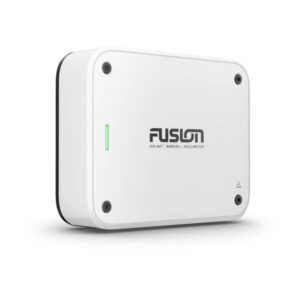

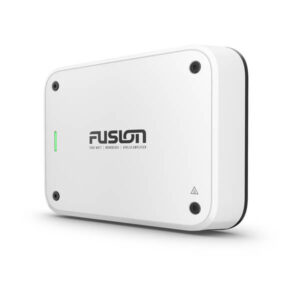

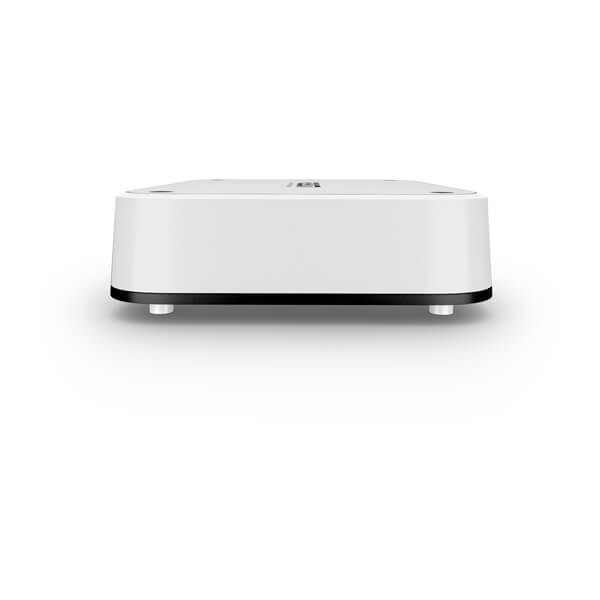

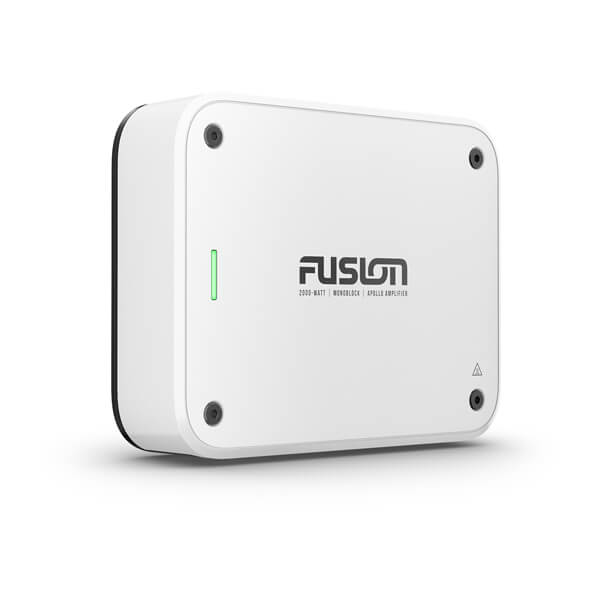

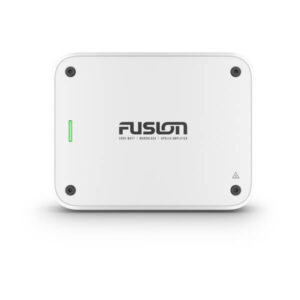

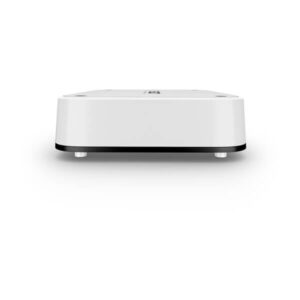

Fusion Apollo Marine Amplifiers Monoblock Marine Amplifier (650-Watt Rms)
Monoblock Marine Amplifier (650-watt RMS)
2,509.00
Series
Fusion®
Apollo Marine Amplifiers Channels
Zone Amplifier Design
Model/Color
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
IT’S THE DIFFERENCE BETWEEN HEARING THE MUSIC AND FEELING IT
These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system1 and let you choose from monoblock, multichannel and zone amplifier options.
Keep the music going for longer without draining your battery as quickly.
No more manual adjustments to your audio settings. The Easy Tune feature does it for you2.
A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating.
These amps have less distortion and noise, so you enjoy quality audio.
Mounting brackets are included for simple installation.
Don’t worry about potential overheating damage with our ignition protection design.
POWER AND EFFICIENCY
The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.
EASY TUNE FEATURE
These amplifiers use the Easy Tune feature 2 , which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
LESS DISTORTION
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
LED INDICATORS
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.
MOUNTING BRACKETS
Easily install the amplifiers on board with the included mounting brackets.
IGNITION PROTECTED
The ignition protected design helps prevent potential damage from overheating.
CONFORMAL-COATED PCBS
The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.
2 OHM STABLE
You can connect up to two speakers per channel, increasing setup options.
FUSION TRUE-MARINE™ DESIGN
The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

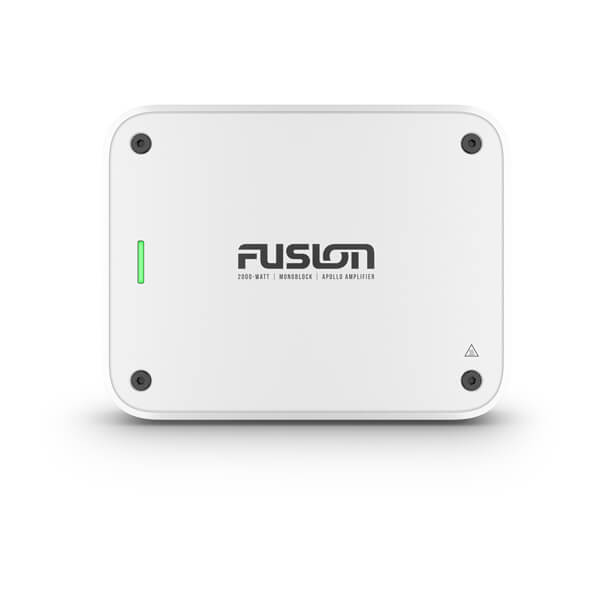

2000-WATT MONOBLOCK AMPLIFIER
Add extra power to your system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer.
1200-WATT 4 CHANNEL AMPLIFIER
This 4 channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.
1800-WATT 6 CHANNEL AMPLIFIER
This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.
2400-WATT 8 CHANNEL AMPLIFIER
This 8 channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power.

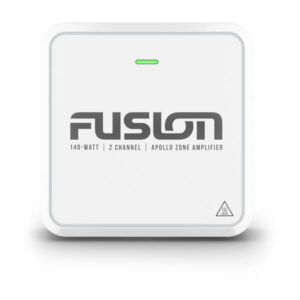

140-WATT ZONE AMPLIFIER
The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.
Additional information
Additional information
| Series | |
|---|---|
| Apollo Marine Amplifiers Channels | 1 |
| Zone Amplifier Design | No |
| Model/Color |
SPECS
Overview |
|
| Physical dimensions without bracket (LxWxH) | Monoblock/4 Channel: 9.25″ x 7.06″ x 1.75″ (235 x 180 x 45 mm) 6 Channel: 11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm) 8 Channel: 14.13″ x 7.06″ x 1.75″ (359 x 180 x 45 mm) Zone: 3.94″ x 3.94″ x 1.57″ (100 x 100 x 40 mm) |
|---|---|
| Physical dimensions with bracket (LxWxH) | Monoblock/4 Channel: 9.25″ x 7.06″ x 2.13″ (235 x 180 x 50 mm) 6 Channel: 11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm) 8 Channel: 14.13″ x 7.06″ x 2.13″ (359 x 180 x 50 mm) Zone: 3.94″ x 4.53″ x 1.89″ (100 x 115 x 48 mm) |
| Weight | Monoblock/4 Channel: 4.85 lb (2.2 kg) 6 Channel: 5.95 lb (2.7 kg) 8 Channel: 6.94 lb (3.15 kg) Zone: 1.01 lb (460 g) |
| Water rating | Monoblock/4/6/8 Channel: IPX2 Zone: IPX7 |
| Amplifier class | Class-D |
| CEA-2006 power rating | Monoblock: 650 watt RMS x 1 @ 14.4 V input – 4 ohm < 1% THD 4 Channel: 150 watt RMS x 4 @ 14.4 V input – 4 ohm < 1% THD 6 Channel: 150 watt RMS x 6 @ 14.4 V input – 4 ohm < 1% THD 8 Channel: 150 watt RMS x 8 @ 14.4 V input – 4 ohm < 1% THD Zone: 20 watt RMS x 2 @ 14.4 V input – 4 ohm < 1% THD |
| Total rated power output – 2 Ohm (Watts) | Monoblock: 1100 watt RMS x 1 @ 14.4 V input – 2 ohm < 1% THD 4 Channel: 290 watt RMS x 4 @ 14.4 V input – 2 ohm < 1% THD 6 Channel: 290 watt RMS x 6 @ 14.4 V input – 2 ohm < 1% THD 8 Channel: 290 watt RMS x 8 @ 14.4 V input – 2 ohm < 1% THD Zone: 30 watt RMS x 2 @ 14.4 V input – 2 ohm < 1% THD |
| Peak power (Watts) | 4 Channel: 580 watt RMS x 2 @ 14.4 V input – 4 ohm Bridged < 1% THD 6 Channel: 580 watt RMS x 3 @ 14.4 V input – 4 ohm Bridged < 1% THD 8 Channel: 580 watt RMS x 4 @ 14.4 V input – 4 ohm Bridged < 1% THD |
| Total rated power output – 4 Ohm Bridged (Watts) | Monoblock: 2000 watts 4 Channel: 1200 watts 6 Channel: 1800 watts 8 Channel: 2400 watts Zone: 140 watts |
| Input sensitivity | Monoblock: 2.15 V RMS 4/6/8 Channel: 1.3 V RMS Zone: 0.45 V RMS |
| Input impedance | Monoblock/4/6/8 Channel: 22k ohm Zone: 9k Ohm |
| Operating voltage | Monoblock/4/6/8 Channel: 10.8 V – 16 V DC Zone Amplifier: 10.8 V – 32 V DC |
| Current consumption (StandBy) | Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input |
| Current consumption (Idle) | Monoblock: < 0.89 A @ 14.4 V input 4 Channel: < 1.15 A @ 14.4 V input 6 Channel: < 1.32 A @ 14.4 V input 8 Channel: < 1.60 A @ 14.4 V input Zone: < 0.04 A @ 14.4 V input |
| Current consumption (Max) | Monoblock: 87 A 4 Channel: 53 A 6 Channel: 78 A 8 Channel: 104 A Zone: 10 A |
| Fuse rating | Monoblock/6/8 Channel: 125 A electronic fuse (no replacement necessary) 4 Channel: 85 A electronic fuse (no replacement necessary) Zone: 16 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 0° to 50° C |
| Warranty | 3 years |
IN THE BOX
Apollo Monoblock Amplifier
One Apollo monoblock amplifier
One mounting bracket
One power connector
One speaker connector
Four 8-gauge, flat head self-tapping screws
Four 8-gauge, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)
Apollo 4 Channel Amplifier
One Apollo 4 channel amplifier
One mounting bracket
One power connector
Two speaker connectors with high power mode adaptors
Four 8-gauge, flat head self-tapping screws
Four 8-gauge, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)
Apollo 6 Channel Amplifier
One Apollo 6 channel amplifier
One mounting bracket
One power connector
Three speaker connectors with high power mode adaptors
Four 8-gauge, flat head self-tapping screws
Four 8-gauge, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)
Apollo 8 Channel Amplifier
One Apollo 8 channel amplifier
One mounting bracket
One power connector
Four speaker connectors with high power mode adaptors
Four 8-gauge, flat head self-tapping screws
Four 8-gauge, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)
Apollo Zone Amplifier
One Apollo zone amplifier
One mounting bracket
Three 6-gauge, self-tapping screws
Wiring loom
Installation instructions
Important safety and product information (ISPI)
