Garmin Gmi 20 Marine Instrument

Marine Instrument

Original price was: AED 2,769.00.Current price is: AED 2,492.00.

Trade-in: Get up to AED 4,000 for your old device
Get instant Cash | Home pickup or Store drop-off More details >
Availability: In stock SKU: 010-01140-00

Description

Perfectly Designed for Power and Sail Vessels

  • Marine instrument display that clearly shows depth, speed, wind and 100+ marine and vessel parameters
  • Large, bright 4″ colour glass-bonded lens display with anti-glare finish
  • Easy to read from a distance and a 170 degree viewing angle
  • Enhanced night time readability with backlight dimmer and full colour or new red/black or green/black colour schemes
  • Low profile flush mount or custom flat mount option

<!–
GMI 20

–>

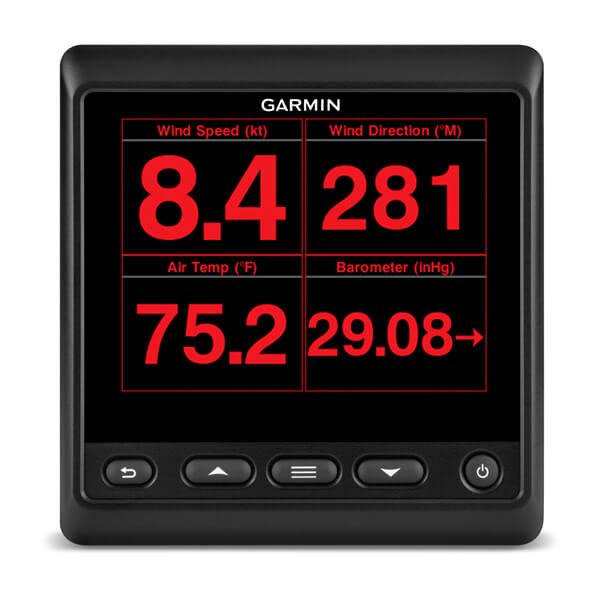

The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4″ colour display with extra large digits is easy to read at a distance and has a 170 degree viewing angle.

GMI 20 ss1

A glass-bonded lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast colour scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode colour scheme along with a dimmer control. Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customised for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.

GMI 20 ss2

In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

Additional information

Series

Display

Color

Screen Size

4-INCH

display Background

White

General

Dimension 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″)
Display Size 4″ diagonal
Display Resolution 320 x 240 pixels
Display Type Color QVGA display
Weight 247 g (8.71 oz)
Water rating IPX7
Mounting Options Flat or Flush
Glass bonded display
Temperature range From 5° to 158°F (from -15° to 70°C)

Sensors

NMEA 0183 Compatible

Electrical Features

Power Consumption 3 W max
Compass safe distance 209 mm (8.25″)

Instrument Features

Auto-on
Vessel & marine parameters N/A
User Profiles
Backlight

Dimensions without sun cover (H×W×D) 110 x 115 x 30 mm
Dimensions with sun cover (H×W×D) 115 x 120 x 35.5 mm
Weight without sun cover 247g
Weight with sun cover 283g
Temperature range From -15° to 70° C
Compass-safe distance 209 mm
Case material Polycarbonate, waterproof to IPX7
Power Usage 2.5 W max
Unit max. voltage 32 Vdc
NMEA 2000® input voltage 9-16 Vdc
NMEA 2000 load equivalency number (LEN) 6 (300 mA at 9 Vdc)

GMI™ 20*
Black trim piece snap cover
Protective cover
Flush mount gasket and hardware
NMEA 2000® T-connector
NMEA 2000 drop cable
Documentation
