Fusion Signature Series Marine Amplifiers

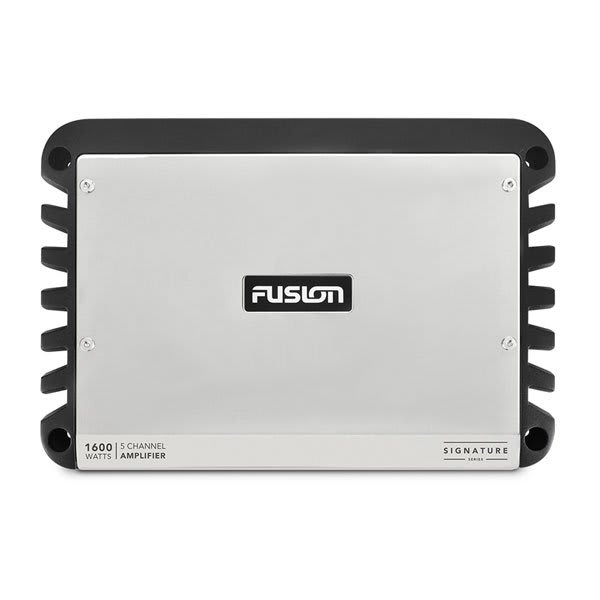

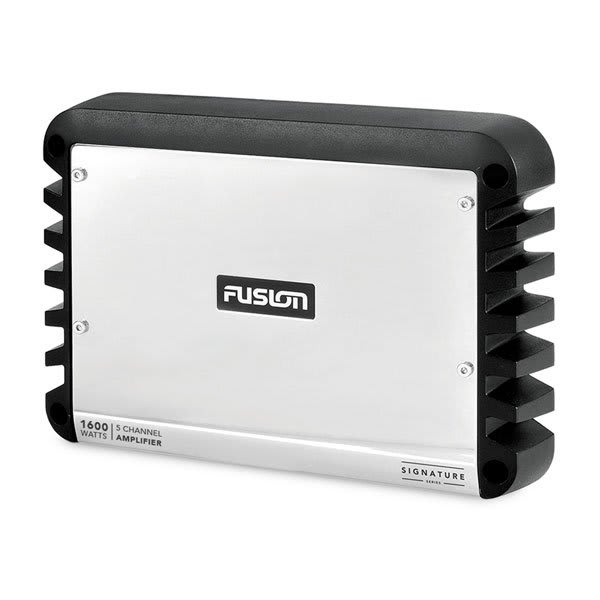

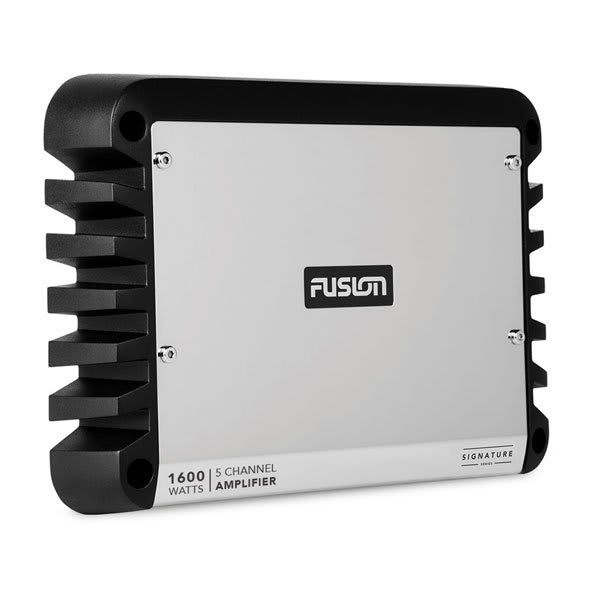

Signature Series 5 Channel 1600-Watt Marine Amplifier
AED 2,189.00
- Description
- SPECS
- IN THE BOX
Description
Description
SPECS
EXPERIENCE THE POWER OF MUSIC
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive environmental protection available — delivering a Signature performance out on the water.
Class-D amplifier design delivers higher efficiency and greater output.
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
Conformal coated PCBs provide extra protection from the marine elements.
Rigid aluminium alloy heat sink is moulded for greater dissipation of heat.
The amplifiers are available in monoblock, 4-channel, 5-channel, 6-channel and 8-channel configurations.
Engineered to last season after season, the amplifiers include a supported 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion ® , the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.
CLASS-D AMPLIFIER TECHNOLOGY
The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for a whole new level of audio performance.
SUPERIOR SYSTEM PERFORMANCE
The Signature Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for superior performance and enhanced system protection.
World-class design and engineering.

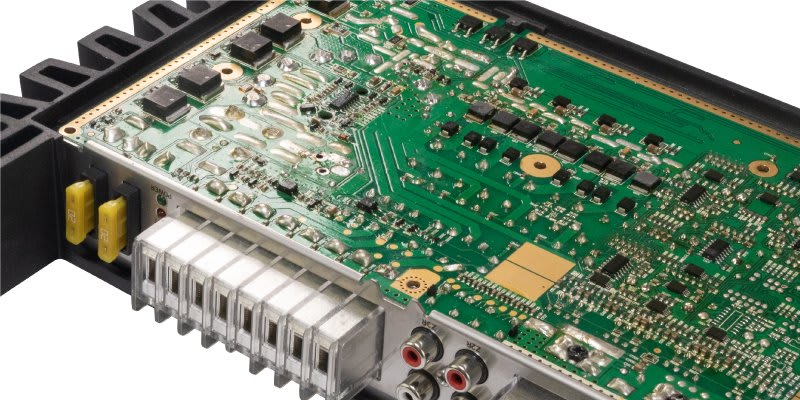

MARINE-READY DESIGN WITH CONFORMAL COATED PCBS
Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

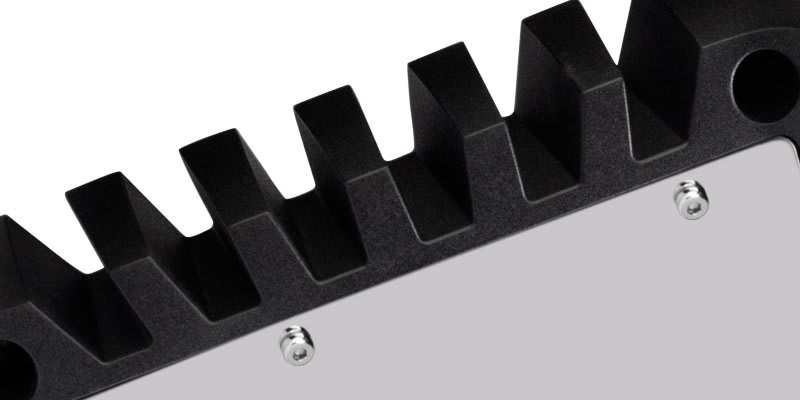

RIGID ALUMINUM ALLOY HEAT SINK
For increased efficiency, the rigid aluminium alloy heat sink is moulded to form a singular die-cast chassis. The fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

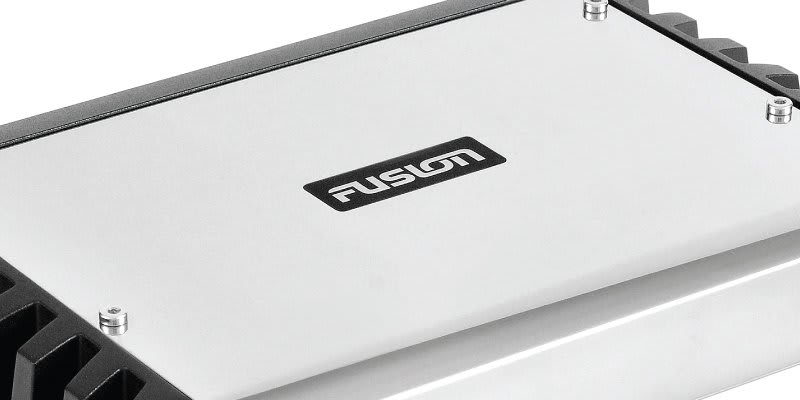

STAINLESS-STEEL MIRROR FINISH

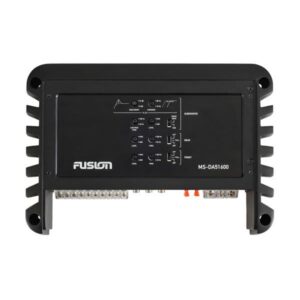

The polished stainless-steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.
Multiple configurations to suit all your audio needs.
2,250-WATT MONOBLOCK AMPLIFIER
The Signature Series 2,250-watt monoblock amplifier is specifically designed to power a subwoofer. The amplifier is configurable for 1-ohm impedance for extra power.
1,400-WATT 4-CHANNEL AMPLIFIER
The Signature Series 1,400-watt 4-channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.

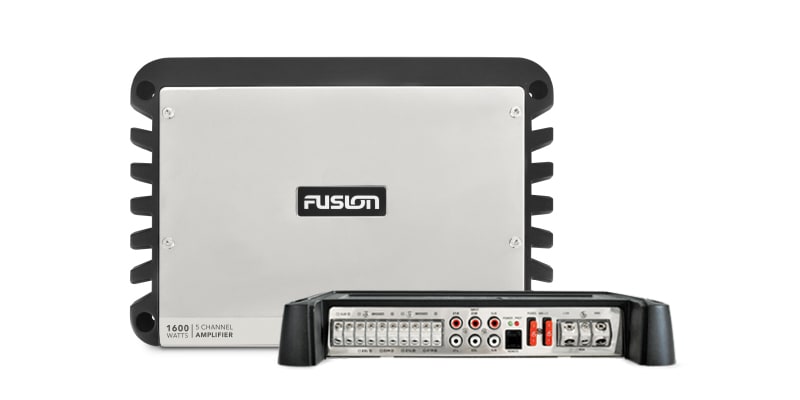

1,600-WATT 5-CHANNEL AMPLIFIER
The Signature Series 1,600-watt 5-channel amplifier can power up to a maximum of four pairs of speakers and one subwoofer.

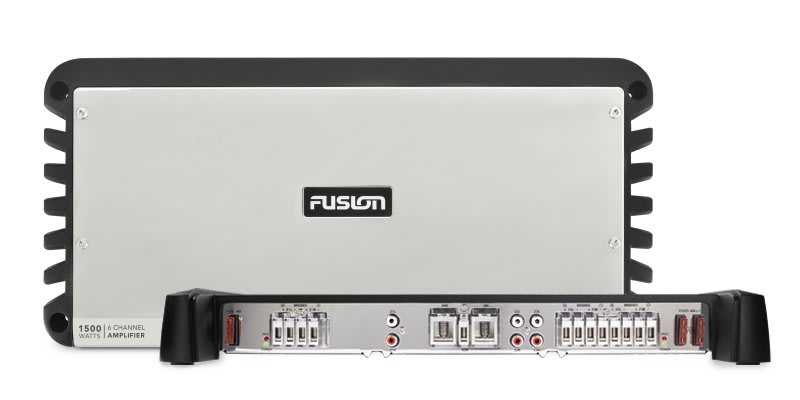

1,500-WATT 6-CHANNEL AMPLIFIER
The Signature Series 1,500-watt 6-channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.

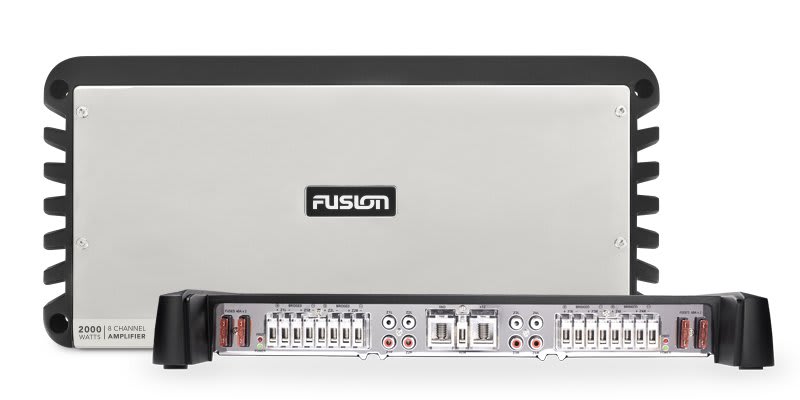

2,000-WATT 8-CHANNEL AMPLIFIER
The Signature Series 2,000-watt 8-channel amplifier can power up to a maximum of eight pairs of speakers or four pairs of speakers and two subwoofers.
Superior sound quality with Fusion DSP and Apollo™.

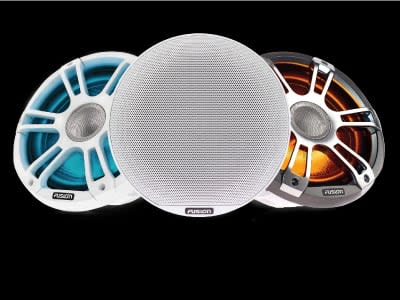

EXPERIENCE PREMIUM ACOUSTIC PERFORMANCE WITH YOUR SIGNATURE SERIES 3 SPEAKERS.
EXPERIENCE PREMIUM LOW FREQUENCIES WITH YOUR SIGNATURE SERIES 3 SUBWOOFERS.
IN THE BOX
General |
|
| PHYSICAL DIMENSIONS (LXWXH) | Monoblock and 4/5 channels: 11.81\” x 8.27\” x 1.97\” (300 x 210 x 50 mm) 6/8 channels: 16.54\\\” x 8.27\\\” x 2.24\\\” (420 x 210 x 57 mm) |
|---|---|
| AMPLIFIER CLASS | D |
| PEAK POWER (WATTS) | Monoblock: 2250 W 4 channel: 1400 W 5 channel: 1600 W 6 channel: 1500 W 8 channel: 2000 W |
| TOTAL RATED POWER OUTPUT – 4 OHM (WATTS) | Monoblock: 500 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 4 channel: 150 W RMS x 4 @ 14.4 V input – 4 Ohm < 1% THD 5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 6 channel: 100 W RMS x 6 @ 14.4 V input – 4 Ohm < 1% THD 8 channel: 100 W RMS x 8 @ 14.4 V input – 4 Ohm < 1% THD |
| TOTAL RATED POWER OUTPUT – 2 OHM (WATTS) | Monoblock: 850 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD 4 channel: 220 W RMS x 4 @ 14.4 V input – 2 Ohm < 1% THD 5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD 6 channel: 140 W RMS x 6 @ 14.4 V input – 2 Ohm < 1% THD 8 channel: 140 W RMS x 8 @ 14.4 V input – 2 Ohm < 1% THD |
| TOTAL RATED POWER OUTPUT (WATTS) | Monoblock: 1100 W RMS x 1 @ 14.4 V input – 1 Ohm < 1% THD 4 channel: 440 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD 5 channel: 250 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD 6 channel: 280 W RMS x 3 @ 14.4 V input – 4 Ohm Bridged < 1% THD 8 channel: 280 W RMS x 4 @ 14.4 V input – 4 Ohm Bridged < 1% THD |
| FREQUENCY RESPONSE | Monoblock Amplifier: 10 Hz – 320 Hz (-3 dB, dB @ 4 Ohm rated power) – subwoofer only 4/5 channels: 10 Hz – 50 kHz (-3dB, dB @ 4 Ohm rated power) 6/8 channels: 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power) |
| INPUT SENSITIVITY | 0.3 V – 8 V RMS (user adjustable) |
| INPUT IMPEDANCE | Monoblock/5 channel: 4k Ohm nominal 4/6/8 channels: 7k Ohm nominal |
| HIGH-PASS/LOW-PASS FULL RANGE FILTER | Yes (user selectable) |
| HP VARIABLE CROSSOVER FREQUENCY | Monoblock: 10 Hz – 80 Hz (subwoofer) 4/5/6/8 channels: 32 Hz – 320 Hz |
| LP VARIABLE CROSSOVER FREQUENCY | Monoblock: 32 Hz – 320 Hz (subwoofer) 4/5/6/8 channels: 32 Hz – 320 Hz |
| BASS BOOST | 0 dB – 9 dB, user adjustable (zone 3 only) |
| OPERATING VOLTAGE | 10.8 V – 16 V DC |
| CURRENT CONSUMPTION (STANDBY) | < 1 mA @ 14.4 V input |
| CURRENT CONSUMPTION (IDLE) | < 2.5 A @ 14.4 V input |
| CURRENT CONSUMPTION (MAX) | Monoblock: 120 A 4/5 channels: 80 A 6 channel: 75 A 8 channel: 100 A |
| FUSE RATING | Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant) 4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant) 8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant) |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| WARRANTY | 3 years |
- Four 8-gauge, self-tapping screws
- 3 mm hex key (for the top cover and power terminals)
- 2.5 mm hex key (for the speaker terminals)
- Polishing cloth
- Spare J1171 compliant 40 A blade-type fuses
